RG63 Low - Loss 125 Ohm RF Cable for Microwave Communication Link , China RG63 Low - Loss 125 Ohm RF Cable for Microwave Communication Link Manufacturers, Suppliers, Factory

Product Description

Standard Mil-c-17

. Insulation Material:Rope+pipe PE
. Impedance:125Ω±5
.Jacket:PVC
. Color:Black

Typical Application:The RG63 coax cable is widely used in GPS systems, PDAs, security equipment, hands-free voice-controlled devices, mobile phones, broadcast equipment, remote controls, and more.

Delivery: Normally3~5 days for samples,it will depend on when you place the order and at that time if our production is busy or free. After all the sample confirmed, 7~15 days for the mass production.However,we'll do our best to speed up with not low the quality.

Custom service:

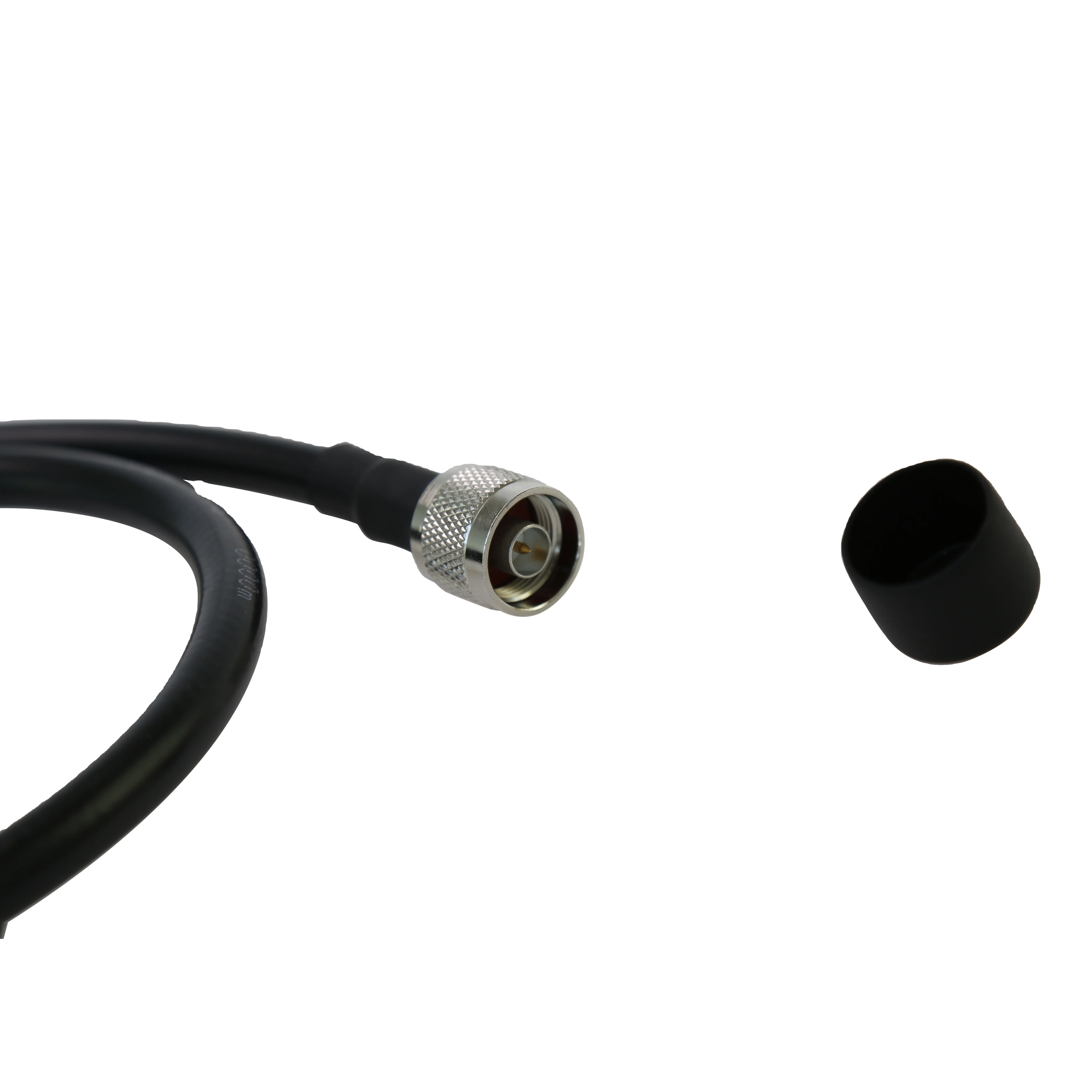

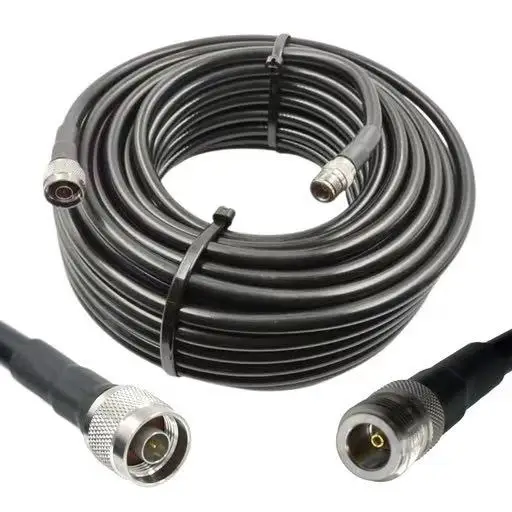

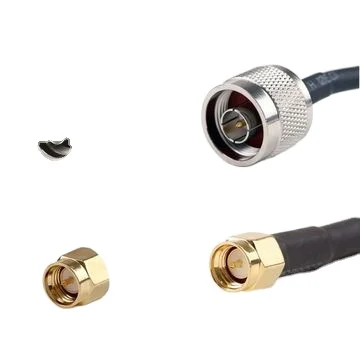

We supply RG63 cable assembly with N connector to SMA connector

Material of Inner Conductor	Silver Copper
Structure of Inner Conductor	1/0.645mm
Material of Insulation	Rope+pipe PE
Diameter of Insulation	7.24mm
Material of Braiding(Shielding)	CCA, BC, TC
Structure of Braiding(Shielding)	1680.15mm+1680.15mm
Material of Jacket	PVC
Diameter of Jacket	10.8mm
Working temp	-40℃/80℃
Impedance	125Ω±5
Voltage	5000V

RG 178/U Coaxial cable 305m 50 ohm low loss antenna system

Packaging & Shipping

Medical microwave ablation cable SFUL-50-3 SFUL-50-4 SFUL-50-5

Company Information

FAQ

Q1: Are you a manufacture or a trading company?
A:We are a professional cable manufacture with more than 20 years production experience.

Q2:What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Cable Assembly,Network cable,electric wire,Network Cable.
We also provide cable assembly according to customers requirement.

Q3:What's your MOQ? Can you offer free samples?
A: Our MOQ is 2KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q4: What's your delivery time?
A:Normally, our delivery time is 7-10 days after received deposit or payment,it base on the quantity of the order.

Q5: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q6:What's your trade term?
A: We accept FOB ShangHai or Ningbo,Guanghzou,Shenzhen,CFR,CIF,EXW term

Q7: Where is your factory located? How can I visit there?
A: Our factory is located in Zhenjiang City,Jiangsu Province,China.
1 hour drive from Nanjing Airport.
3 hours drive or 1 and a half hour by high speed rail to railway station from shanghai.

Q8:Do you accept OEM/ODM?
A:Sure.we accept.

Why choose us:
1.We have more than 20 years experience for communication cables and cable assembly.
2.We own R&D team more than 10 engineers,give you strongest support !
3.Fast delivery time ,we have big capacity with short production time.
4.Factory directly sale - Most Competitive price than average level .
5.We have very strict quality control system during the whole production process.We always inspect all the goods before shipment.
6.IATF 16949 /UL certification approved.
