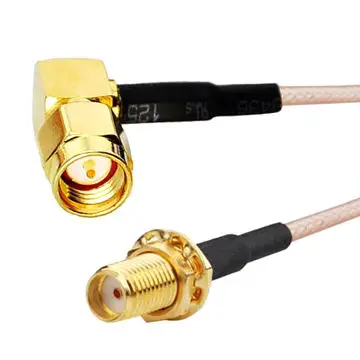

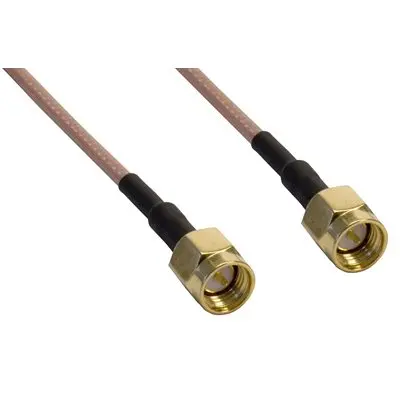

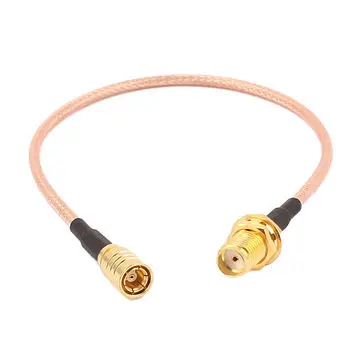

RG316 RG178 Coaxial Cable Assembly SMA Right Angle Low Loss 50 Ohm

Get a Free Quote

RG316 RG178 Coaxial Cable Assembly  SMA Right Angle Low Loss 50 ohm

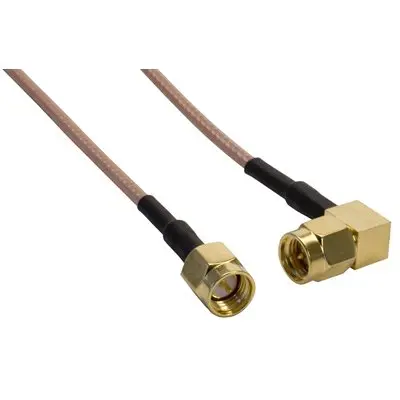

SMA ANGLE TO SMA.jpg


Product Description

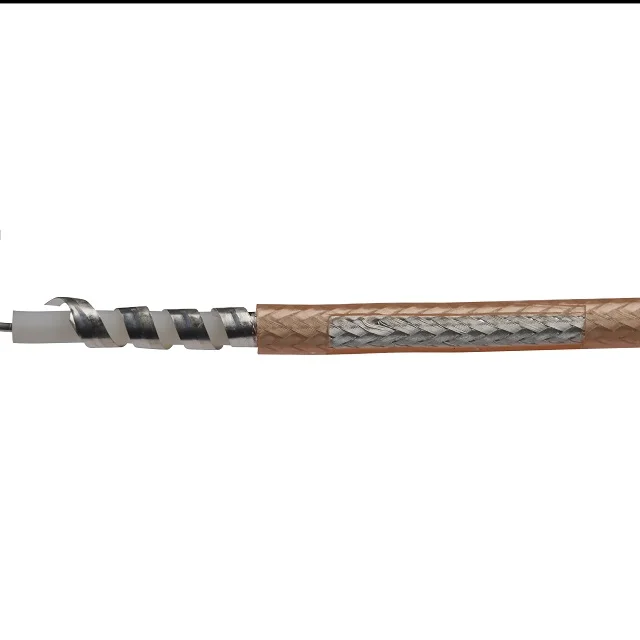

Construction
Diameter(mm)
Silver Plated Copper clad Steel(SCCS)
7*0.175
PTFE
1.52
Silver Plated Copper(SC) Braid
Nom: 1.95
FEP
2.50

Similar Cable Comparasion

BC: Bare Copper
SC: Silver Plated Copper
SCCS: Silver Plated Copper Clad Steel
Units: mm

Conductor
Dielectric
Braiding
Jacket
RG316
7*0.175 SCCS
1.52 PTFE
1.95 SC
2.50 FEP
RG142
0.93 SCCS
3.00 PTFE
3.95 SC
4.95 FEP
RG316D
7*0.175 SCCS
1.52 PTFE
2.40 SC
2.90 FEP
RG174
7*0.16 BC
1.52 Solid PE
1.52 Solid PE
2.79 PVC
RG178
7*0.102 SCCS
0.86 PTFE
1.30 SC
1.83 FEP
