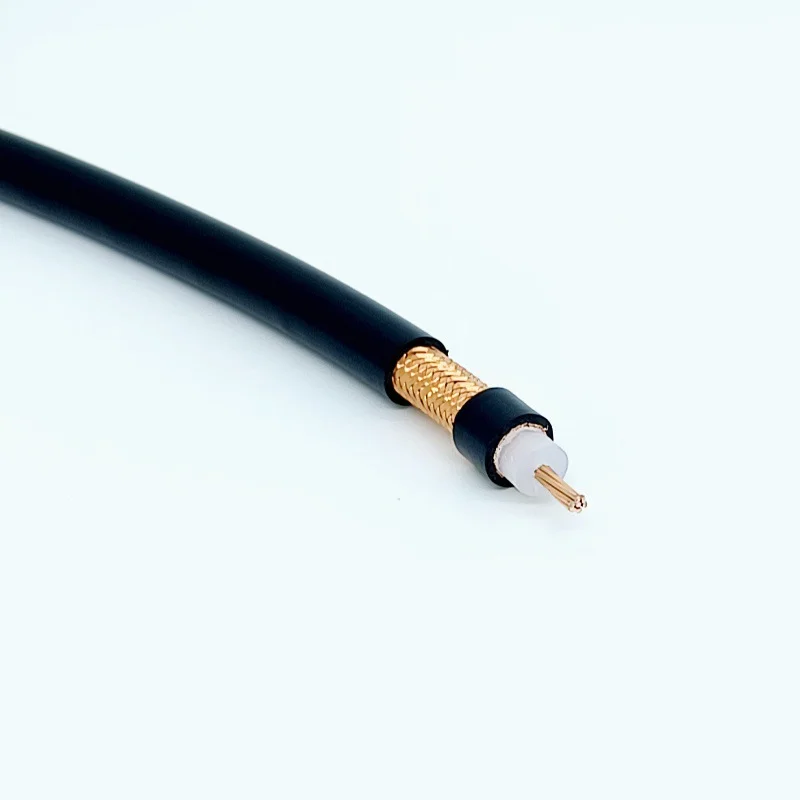

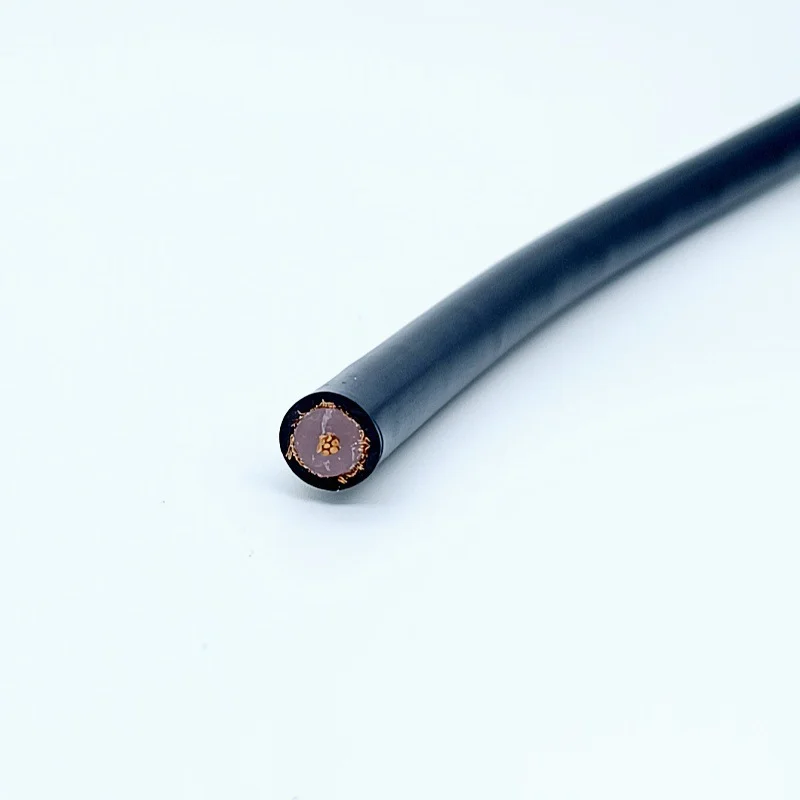

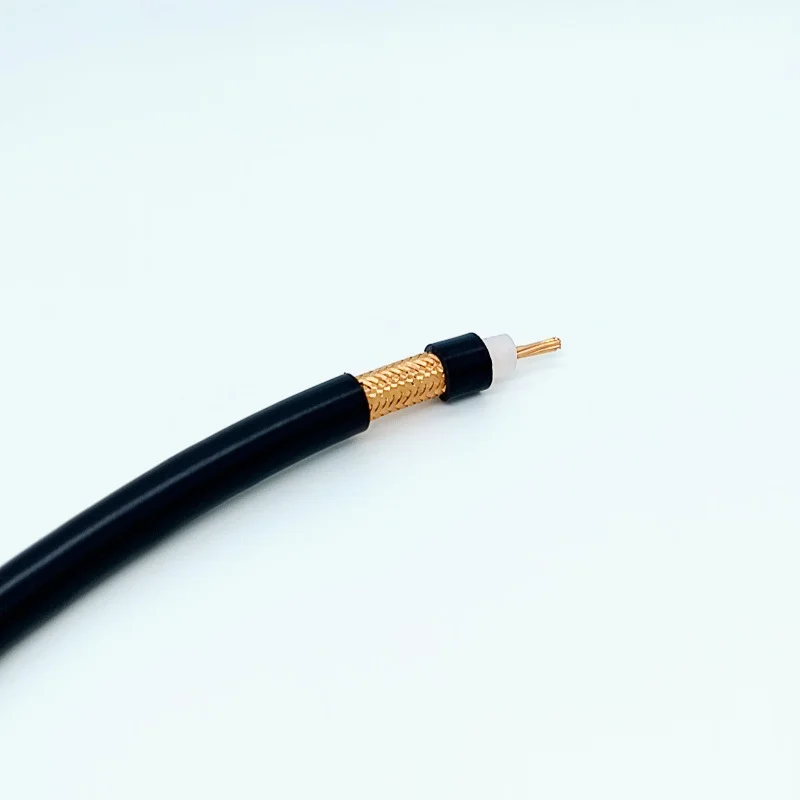

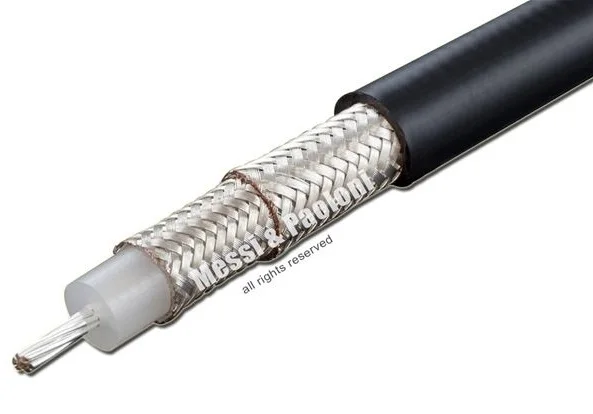

RG213 RG214 (SYV-50-7) 50Ohm Coaxial Cable RF Coax Cable Custom Manufacturing , China RG213 RG214 (SYV-50-7) 50Ohm Coaxial Cable RF Coax Cable Custom Manufacturing Manufacturers, Suppliers, Factory

Product Description

RG213/U coaxial cable specifications
Material of Inner Conductor	Bare Copper
Structure of Inner Conductor	7/0.75mm
Material of Insulation	Solid PE
Diameter of Insulation	7.25mm
Material of Braiding(Double Shielding)	Bare Copper
Structure of Braiding(Double Shielding)	144*0.15mm
Material of Jacket	PVC
Diameter of Jacket	10.20mm
Working temp	-40ºC/80ºC
Impedance	50Ω±2
Voltage	1500V
Weight	156KG/KM

2.Electrical Specifications
Characteristic Impedance(Ohm)	75
Nominal Velocity of Propagation (%)	85
Nominal Capacitance(pF/m)	50
Sparker Test(VAC)	4000
SRL(dB, min)	20
