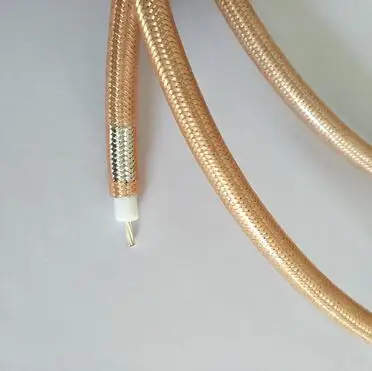

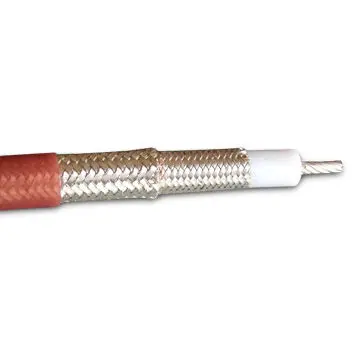

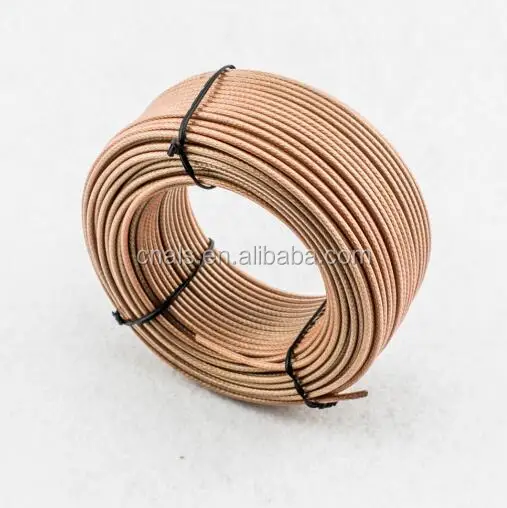

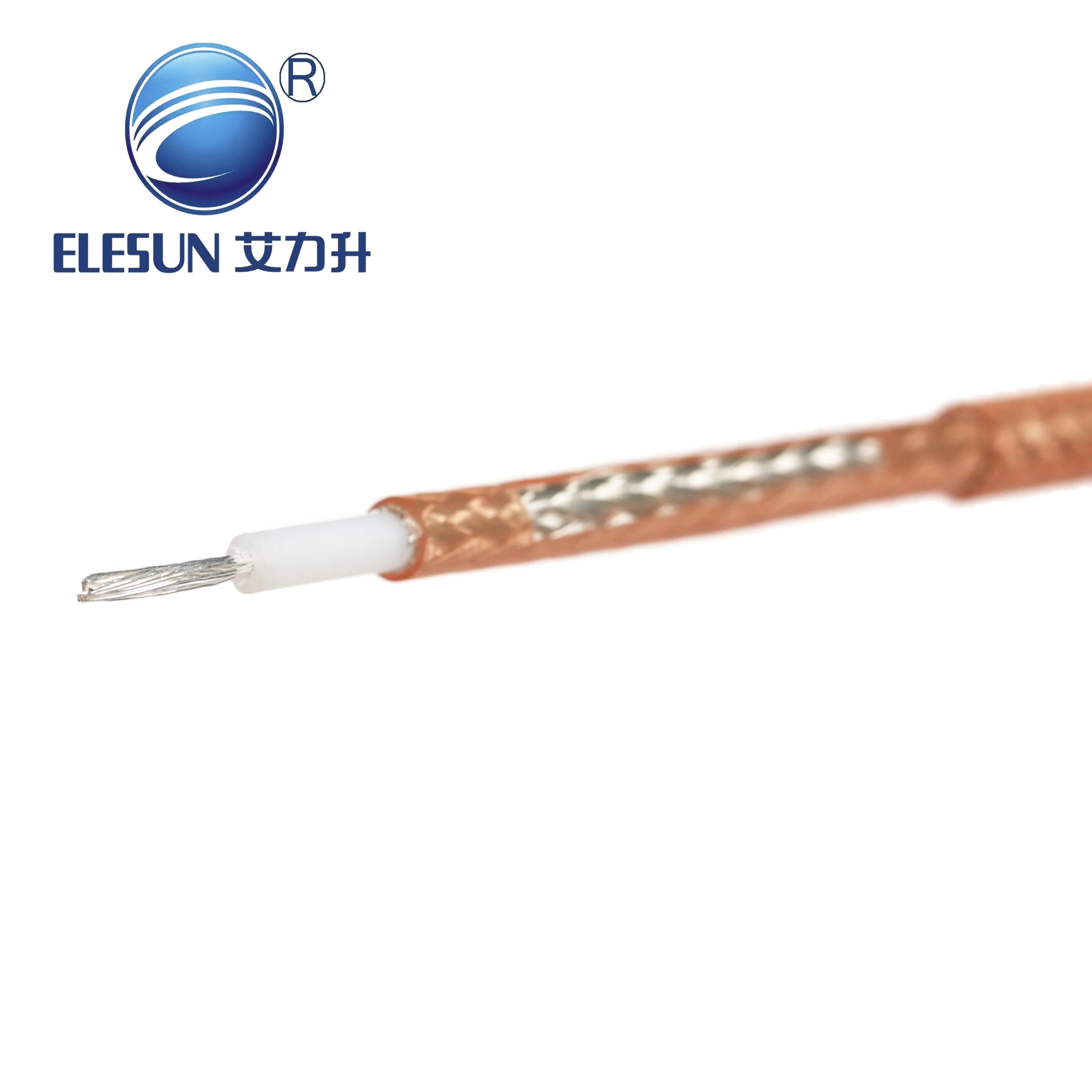

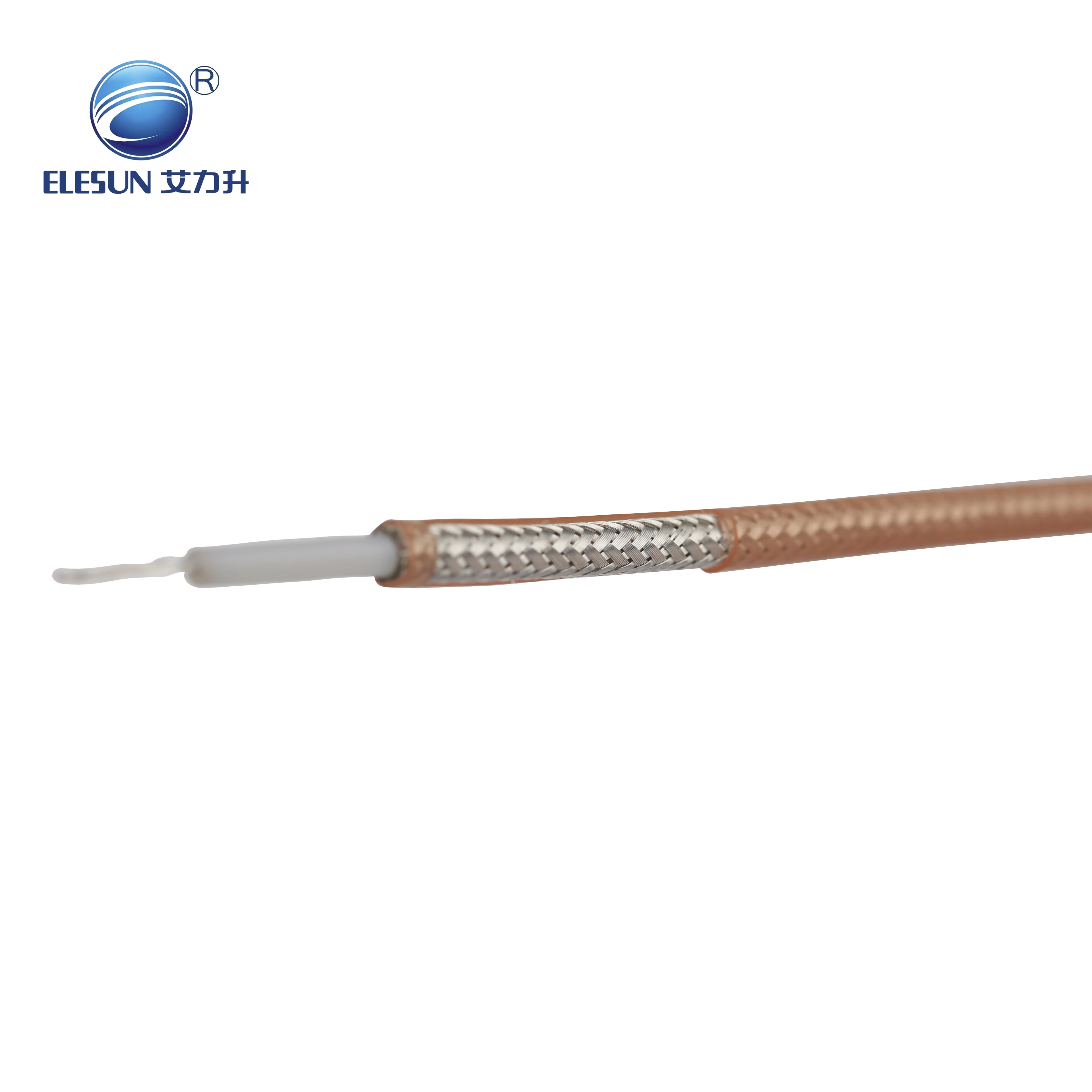

RG141 RF Coaxial Cable with FEP Jacket MILC17 Standard for High Temperature Telecommunication

Product Description

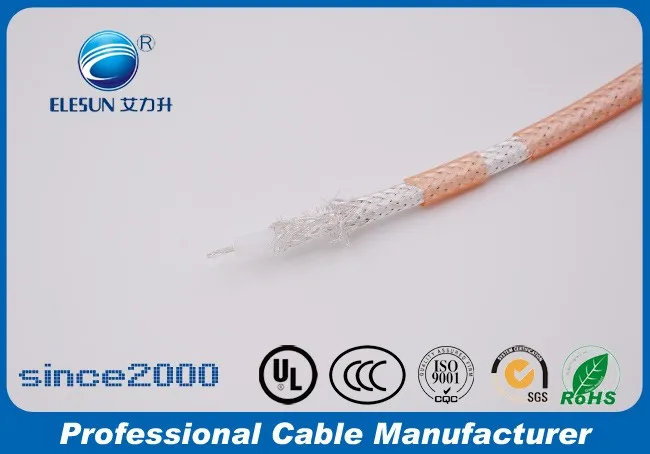

RG142-coaxial-cable_elesuncable
Standard Mil-c-17
. Insulation Material:PTFE
. Impedance:50Ω±2
.Jacket:FEP
. Color:Light Brown

Typical Application:The RG-141 coax cable is widely used in GPS systems, PDAs, security equipment, hands-free voice-controlled devices, mobile phones, broadcast equipment, remote controls, and more.

Delivery: Normally3~5 days for samples,it will depend on when you place the order and at that time if our production is busy or free. After all the sample confirmed, 7~15 days for the mass production.However,we'll do our best to speed up with not low the quality.

Custom service:
We supply RG303 cable assembly with N connector to SMA connector
Material of Inner Conductor
Silver Copper
Structure of Inner Conductor
1/0.94mm
Material of Insulation
PTFE
Diameter of Insulation
2.95mm
Material of Braiding(Shielding)
Silver Copper
Structure of Braiding(Shielding)
112*0.12mm
Material of Jacket
FEP
Diameter of Jacket
4.32mm
Working temp
-55℃/200℃
Impedance
50Ω±2
Voltage
2000V
