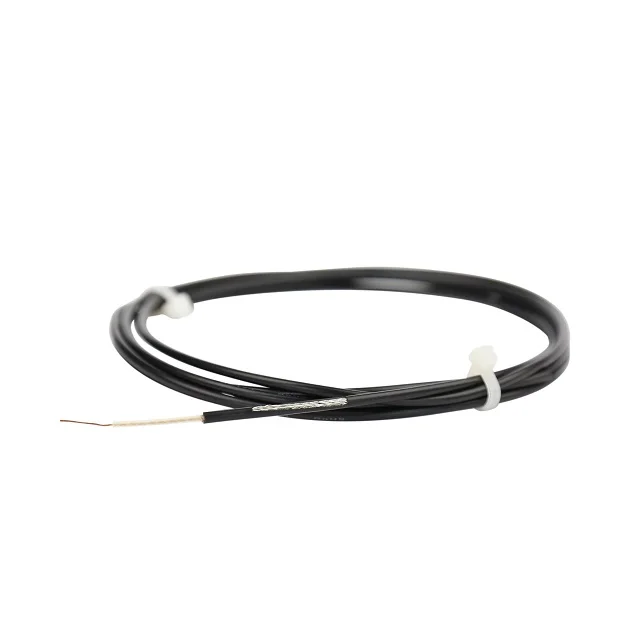

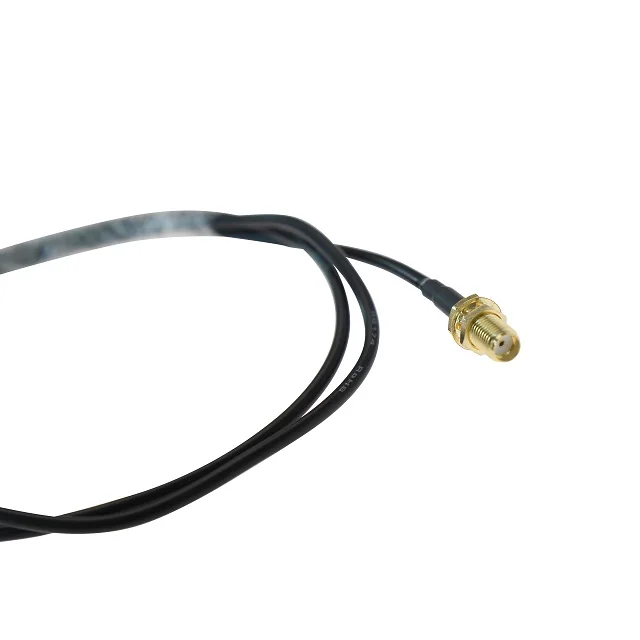

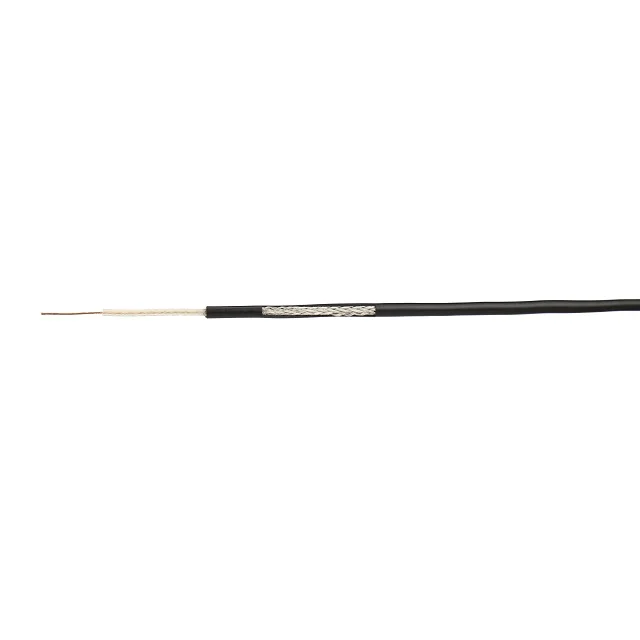

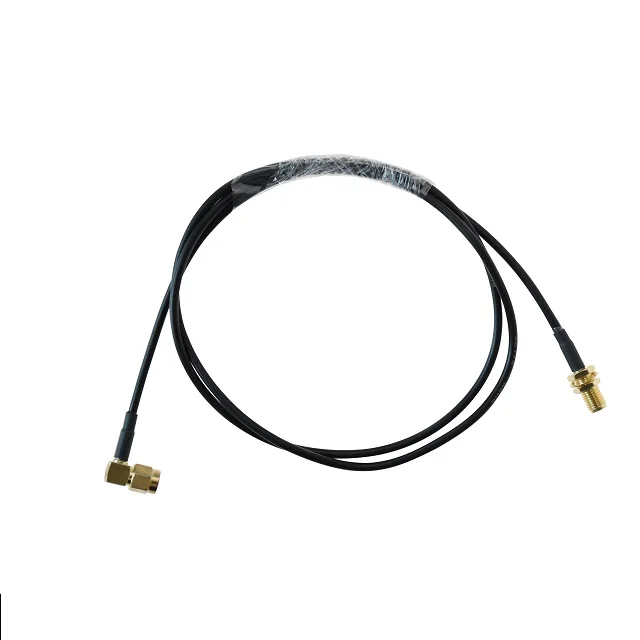

RF cable RG174/U SMA 50ohm for antenna wifi router
|
RG174/U coaxial cable specifications |
|
|
Material of Inner Conductor |
Cu, CCS, TC |
|
Structure of Inner Conductor |
7/0.16mm |
|
Material of Insulation |
Solid PE |
|
Diameter of Insulation |
1.52mm |
|
Material of Braiding(Shielding) |
Bare Copper, Tinned Copper |
|
Structure of Braiding(Shielding) |
80*0.10mm |
|
Material of Jacket |
PVC |
|
Diameter of Jacket |
2.8mm |
|
Working temp |
-40℃/80℃ |
|
Impedance |
50Ω±2 |
|
Voltage |
1500V |
|
Weight |
15KG/KM |
specification :
RG174
Inner conductor copper ,tinned copper, CCS
Insulation : PE or Foam PE
Braid: 32 64/96/112 x0.1 mm
Pack: 500/1000/1500m
