Manufacture communication 12D-FB low loss bare copper conductor foamed PE coaxial cable

Get a Free Quote
Product Description

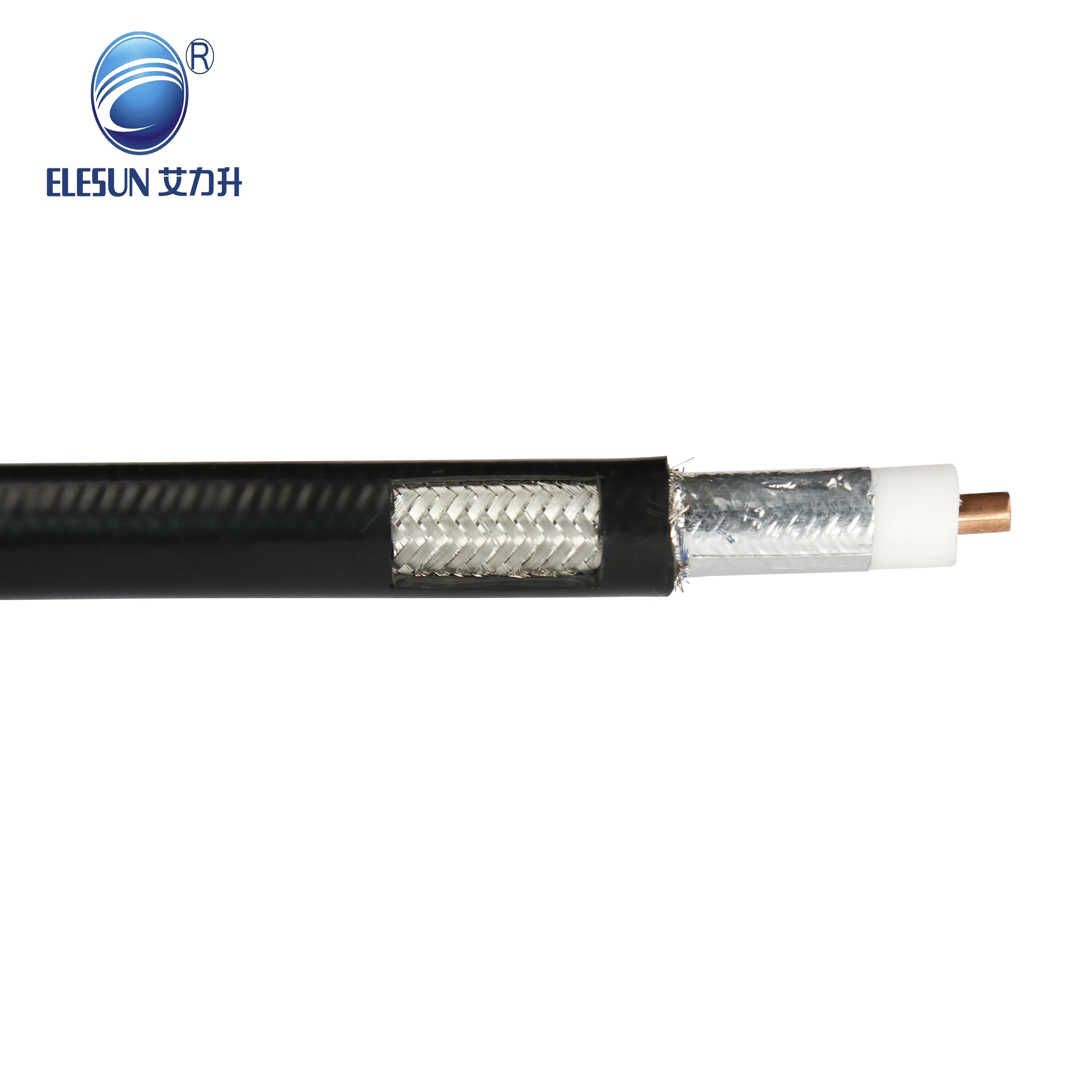

Manufacture communication 12D-FB low loss bare copper conductor foamed PE coaxial cable

Conductor :CCA(Copper Clad Aluminum)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White

Typical Application:
1.LS600 is the same specification as LMR600, generallydesigned for jumper assemblies in wireless communications systems
2.LSR600 has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different environment
3.LSR600(LMR600) is equivalent to 12D-FB foam PE coaxial cable
Best Feature:
4.LSR600/ LMR600 cable features a flexible outer conductor, the bending radius is better than the cable in similar size.
5.Low Loss: Lowest loss of any flexible cable; comparable loss to semi-rigid cables

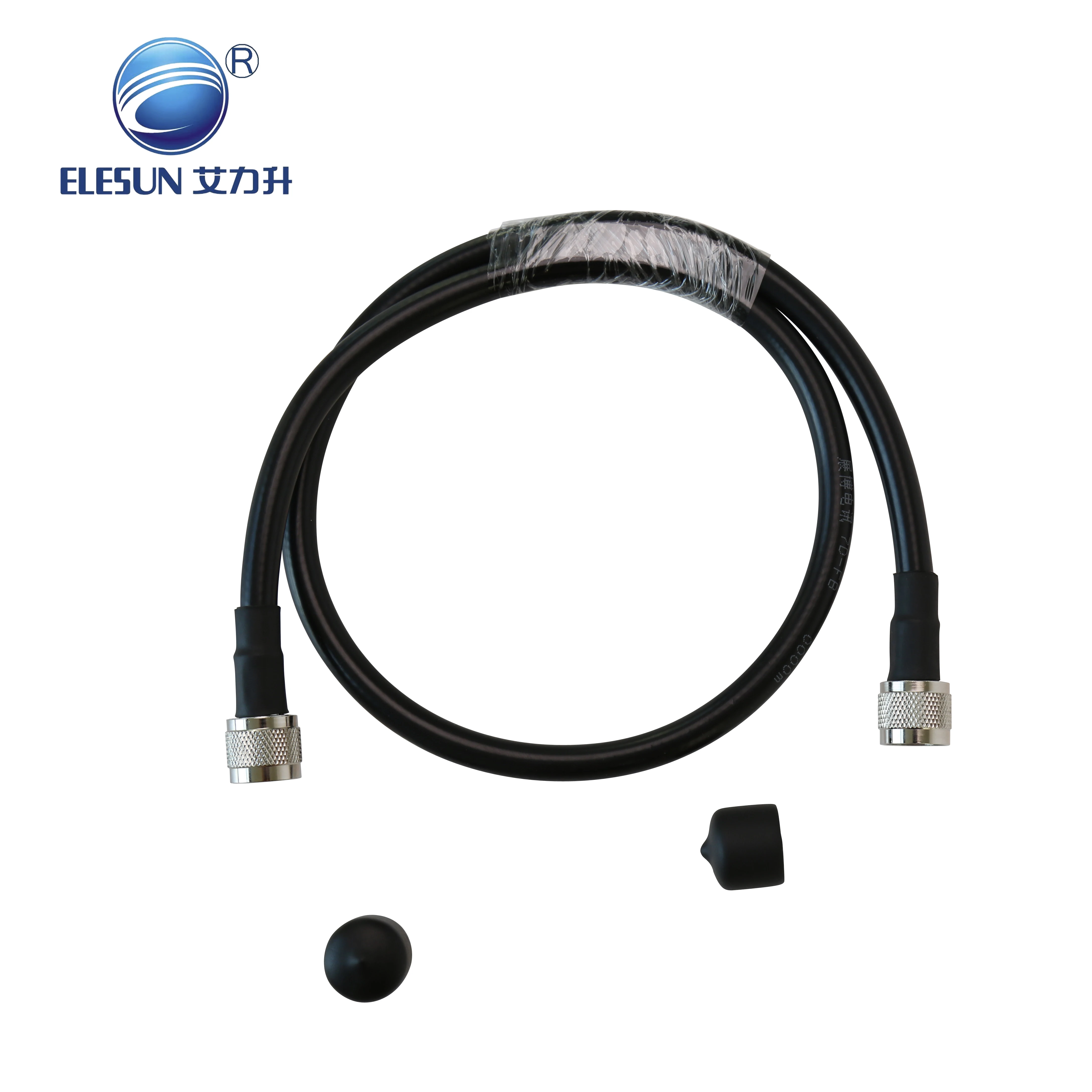

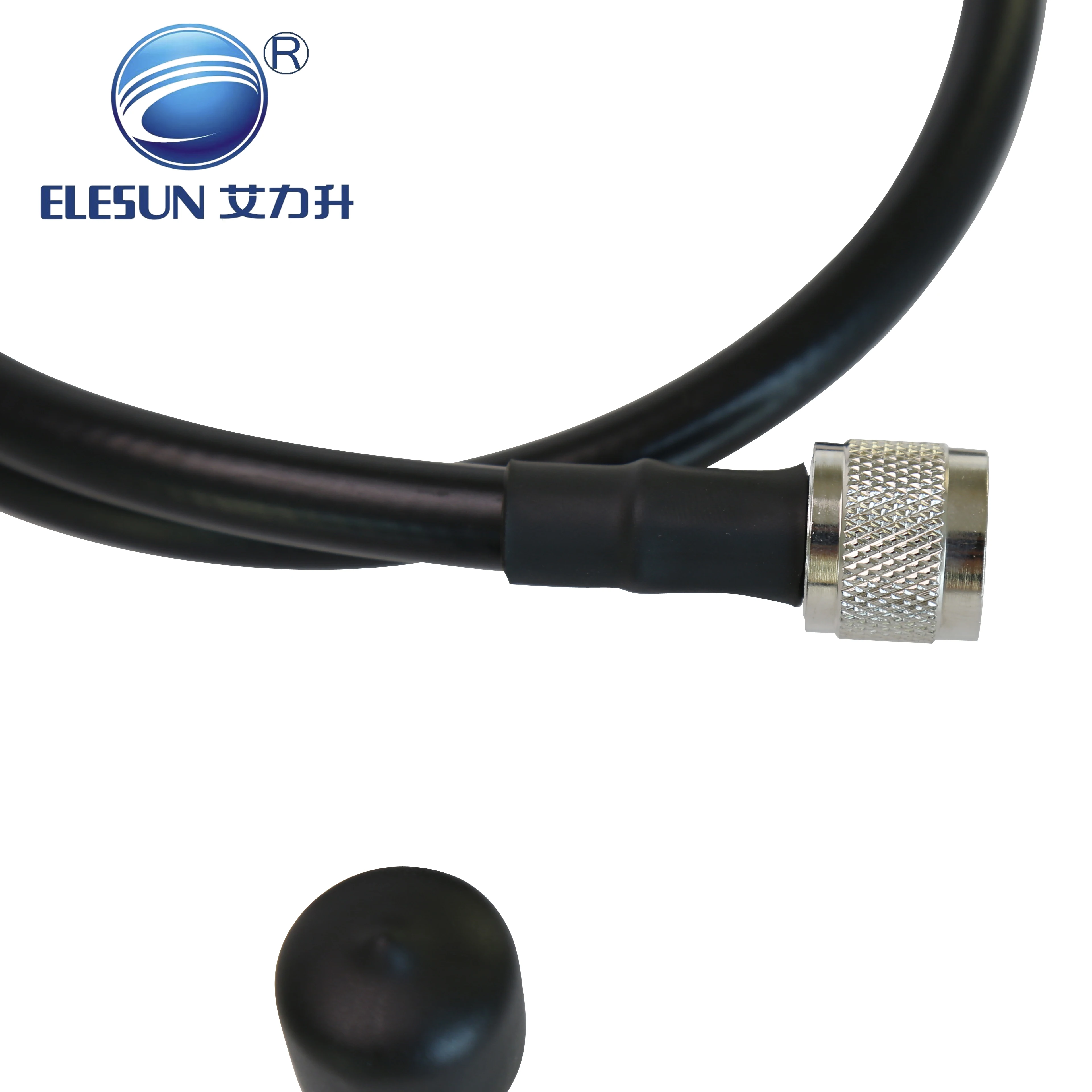

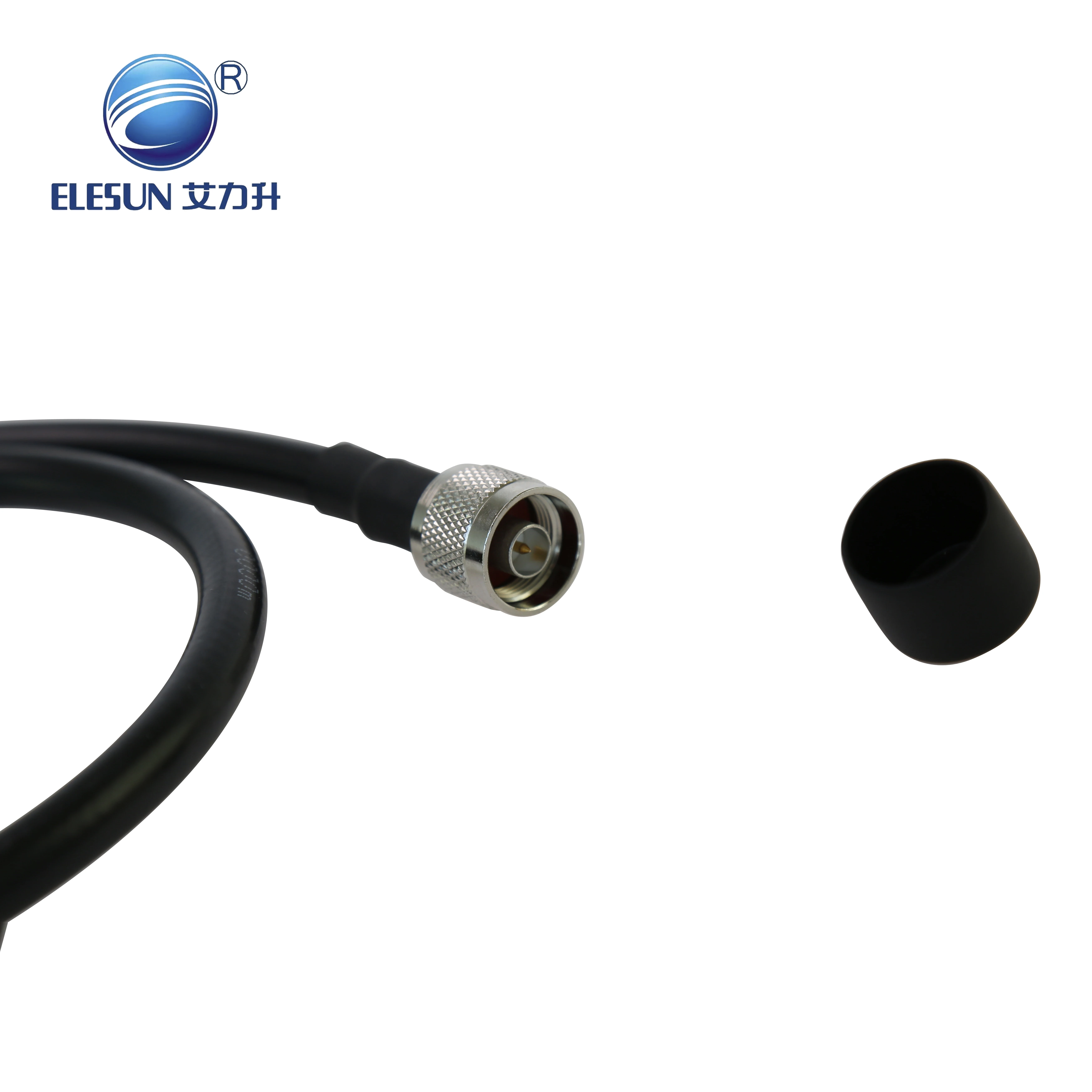

Please contact us for LSR600 cable assembly with N connector to SMA connector
ALSR600(LMR600) low loss coaxial cable specifications
Material of Inner Conductor
CCA, BC
Structure of Inner Conductor
1/4.47mm
Material of Insulation
FPE(Foam PE)
Diameter of Insulation
11.5mm
1st Shielding
Aluminum Tape
Material of Braiding(2nd Shielding)
TC (Tinned Copper)
Structure of Braiding(2nd Shielding)
168*0.18mm
Material of Jacket
PVC,PE, FRPE, FRPVC
Diameter of Jacket
15.0mm
Working temp
-40℃/80℃
Impedance
50Ω±2
Voltage
4000V
SWR(0-2500MHz)
≤1.2
Packing & Delivery
Company Profile
Q1: Are you a manufacture or a trading company?
A:We are a professional cable manufacture with more than 20 years production experience.

Q2:What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Cable Assembly,Network cable,electric wire,Network Cable.
We also provide cable assembly according to customers requirement.

Q3:What's your MOQ? Can you offer free samples?
A: Our MOQ is 2KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q4: What's your delivery time?
A:Normally, our delivery time is 7-10 days after received deposit or payment,it base on the quantity of the order.

Q5: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q6:What's your trade term?
A: We accept FOB ShangHai or Ningbo,Guanghzou,Shenzhen,CFR,CIF,EXW term

Q7: Where is your factory located? How can I visit there?
A: Our factory is located in Zhenjiang City,Jiangsu Province,China.
1 hour drive from Nanjing Airport.
3 hours drive or 1 and a half hour by high speed rail to railway station from shanghai.

Q8:Do you accept OEM/ODM?
A:Sure.we accept.

Why choose us:
1.We have more than 20 years experience for communication cables and cable assembly.
2.We own R&D team more than 10 engineers,give you strongest support !
3.Fast delivery time ,we have big capacity with short production time.
4.Factory directly sale - Most Competitive price than average level .
5.We have very strict quality control system during the whole production process.We always inspect all the goods before shipment.
6.IATF 16949 /UL certification approved.
