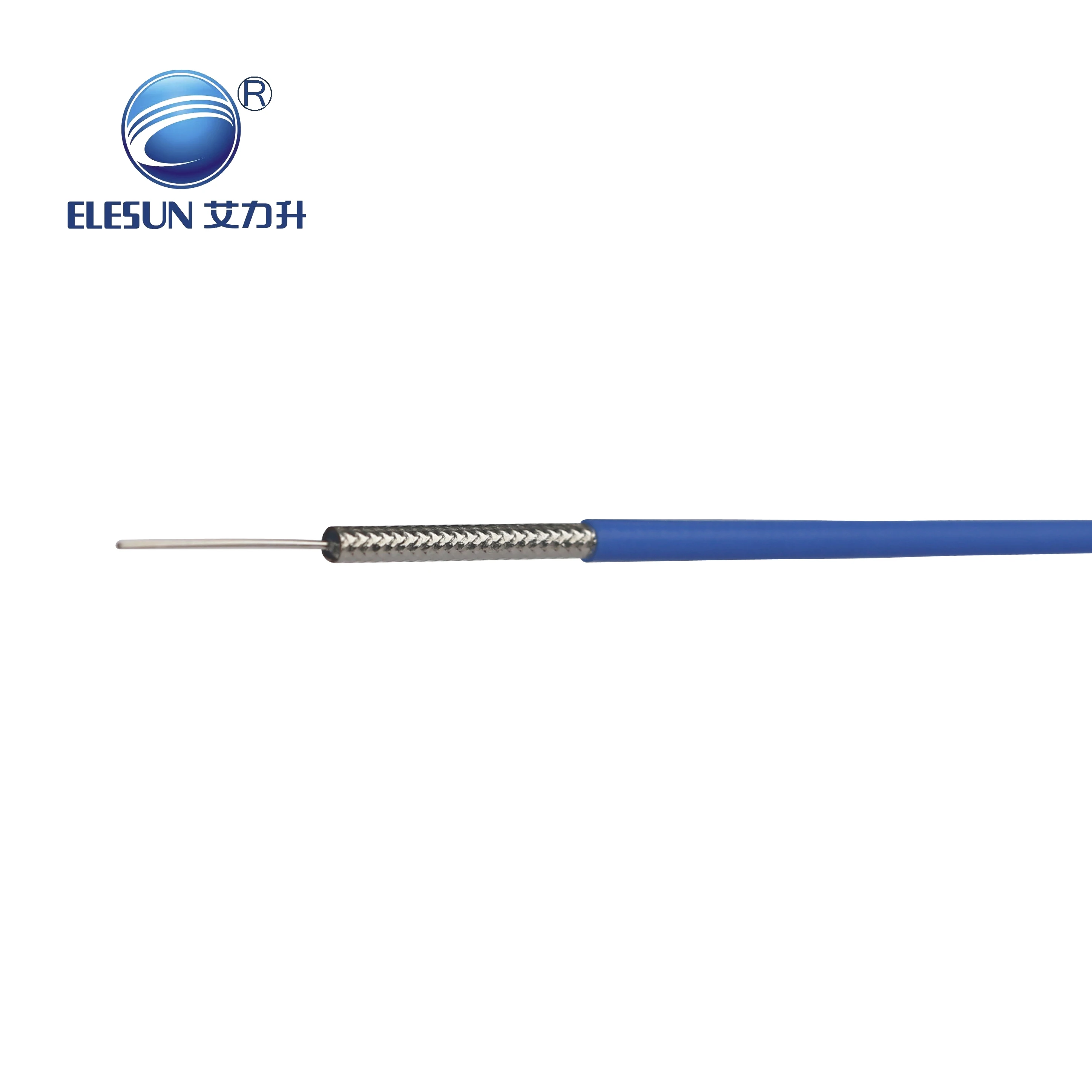

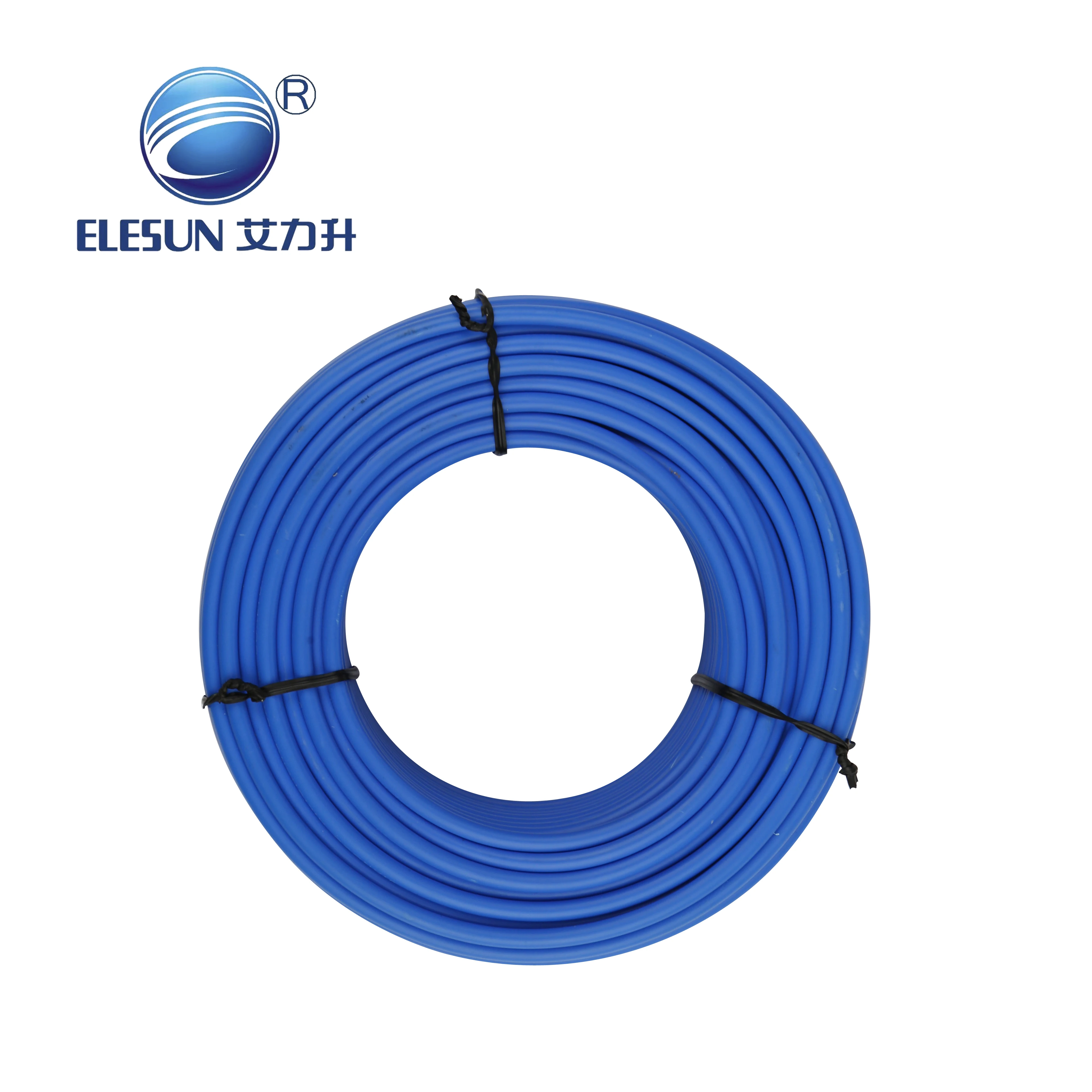

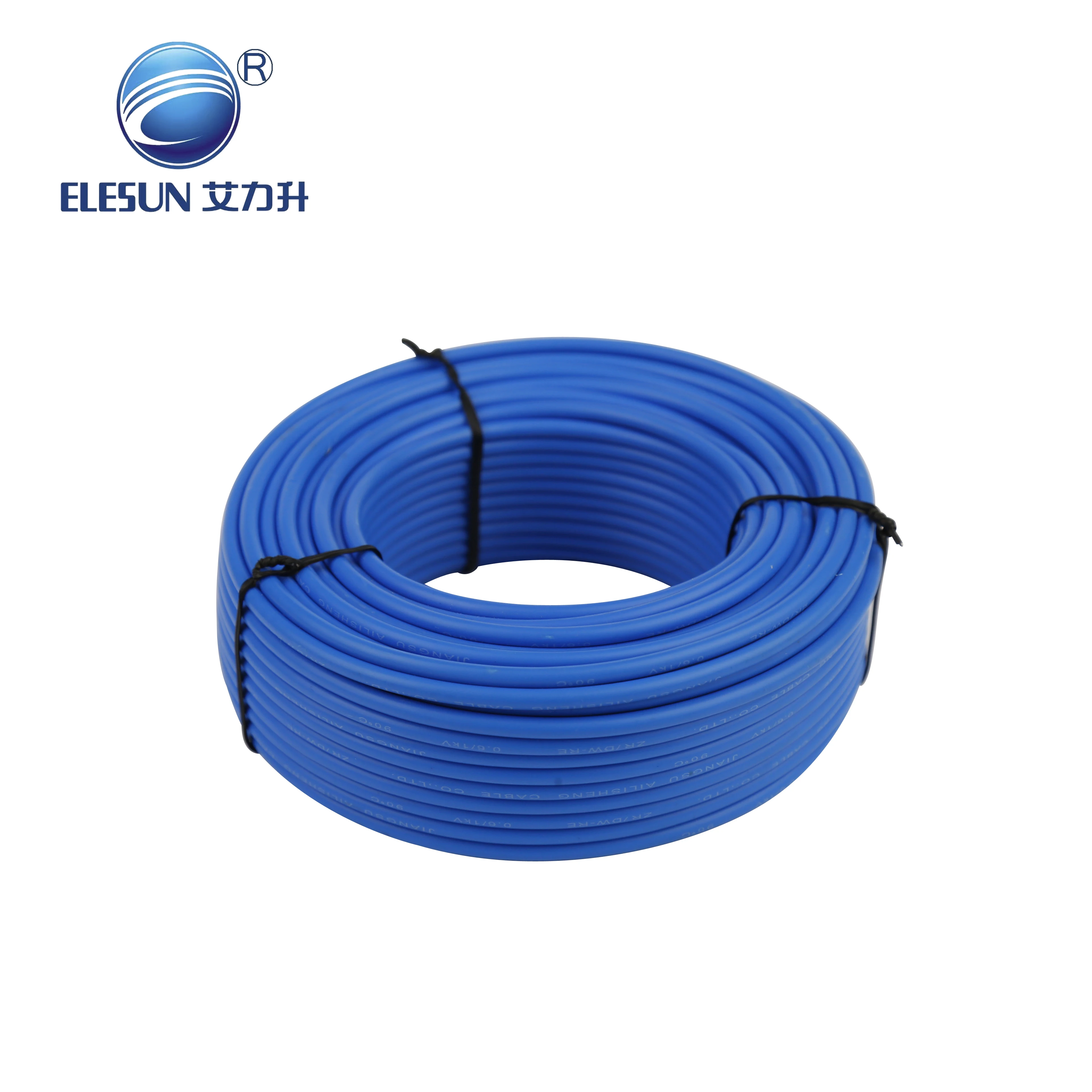

LX-50-250 PTFE Insulation Semi-flexible Cables , China LX-50-250 PTFE Insulation Semi-flexible Cables Manufacturers, Suppliers, Factory

Technical data of product
Name of cable			Solid polytetrafluoroethylene insulated semi-soft cables
Type of cable			LX-50-250			Standard	MIL-C-17

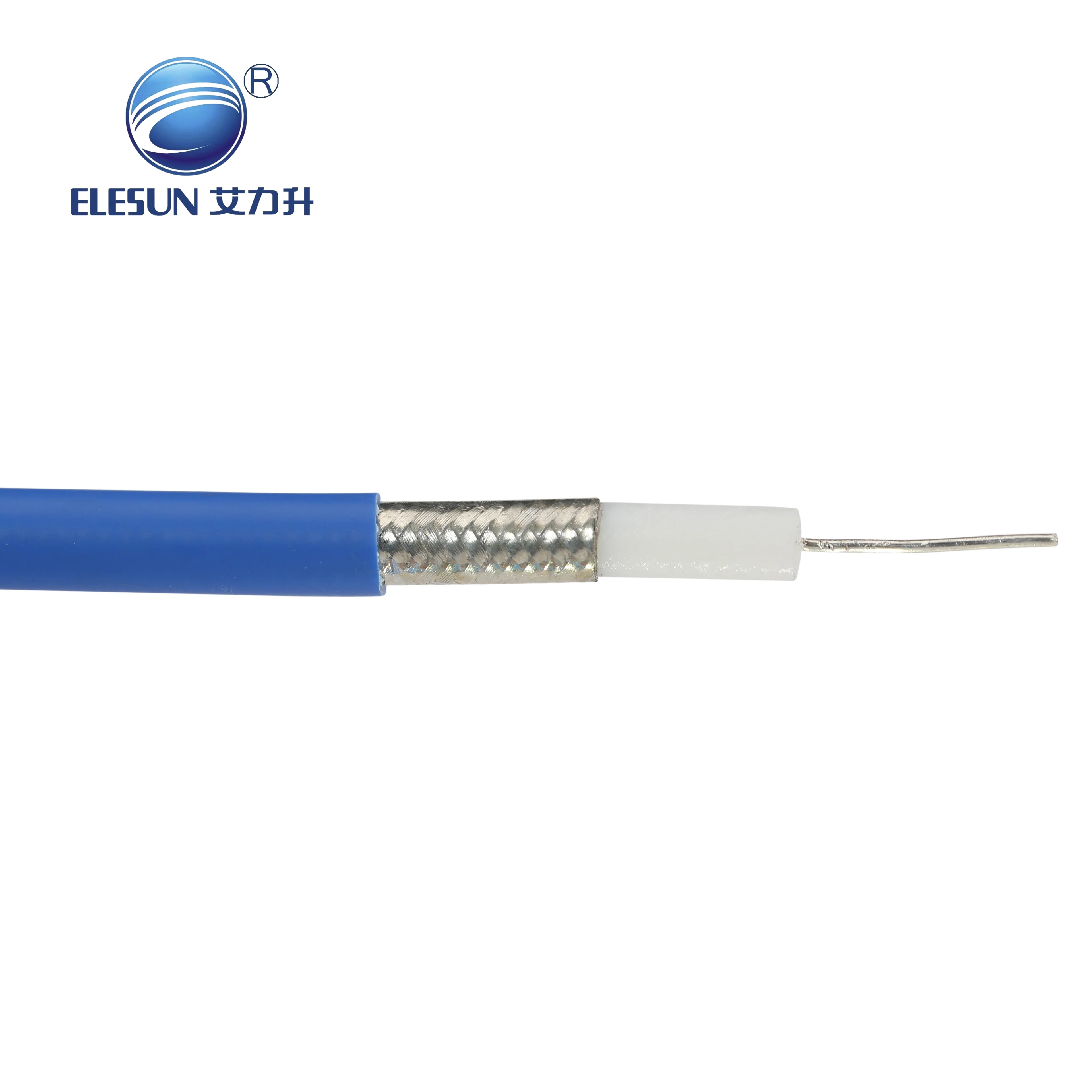

1. Size of product
NO.	Item			Structure	Material			Color
1	Inner conductor			1.63±0.03 mm	Silvered Copper			Silver
2	Insulation			5.30±0.10mm	PTFE			White
3	Wire braid			120*0.15mm	Tc/Sn			Silver
4	Jacket			7.00±0.10mm	LSZH			Blue
5	Making			LX-50-250 COAXIAL CABLE 50Ω
2. Electrical physical and properties of product
Item					Unit			Value
Capacitance					pF/m			95±5
Impedance					Ω			50±2
Velocity ratio					%			70
Bent radius					mm			120
Max voltage					VMS			3500
Max Frequency					MHz			18000
Temperature scope					℃			-40 ~ 90
SWR		0~3000MHz			-			1.16
		3000~10000MHz			-			1.30
		500MHz			dB/100m			17
		1000MHz			dB/100m			24
Attenuation constant		2000MHz			dB/100m			39
at 20℃(Max.)		5000MHz			dB/100m			72
		10000MHz			dB/100m			110
		15000MHz			dB/100m			140
IM3 dbc		900MHz			≤-115
		1800 MHz			≤-120
		2100 MHz			≤-120
		2600 MHz			≤-120
