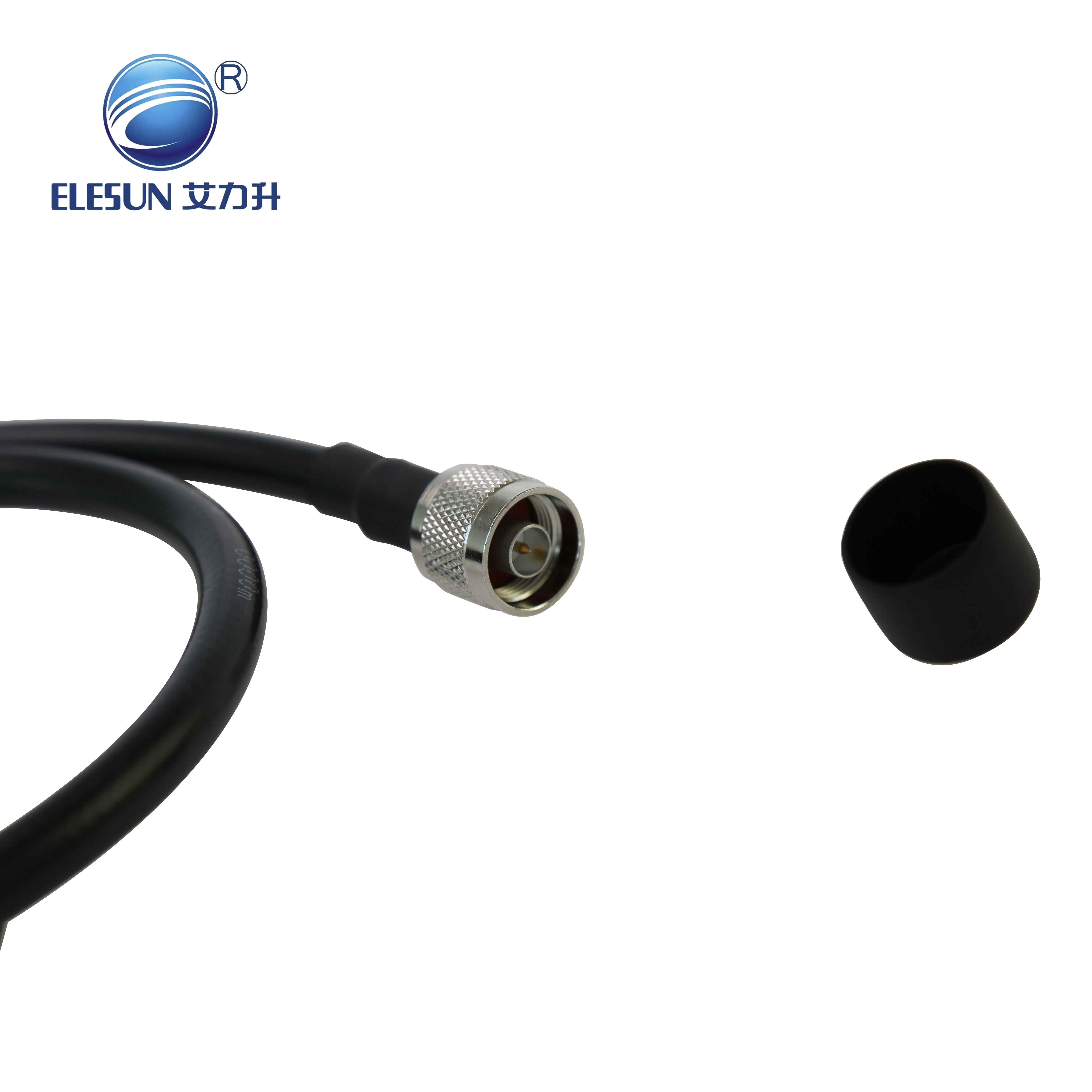

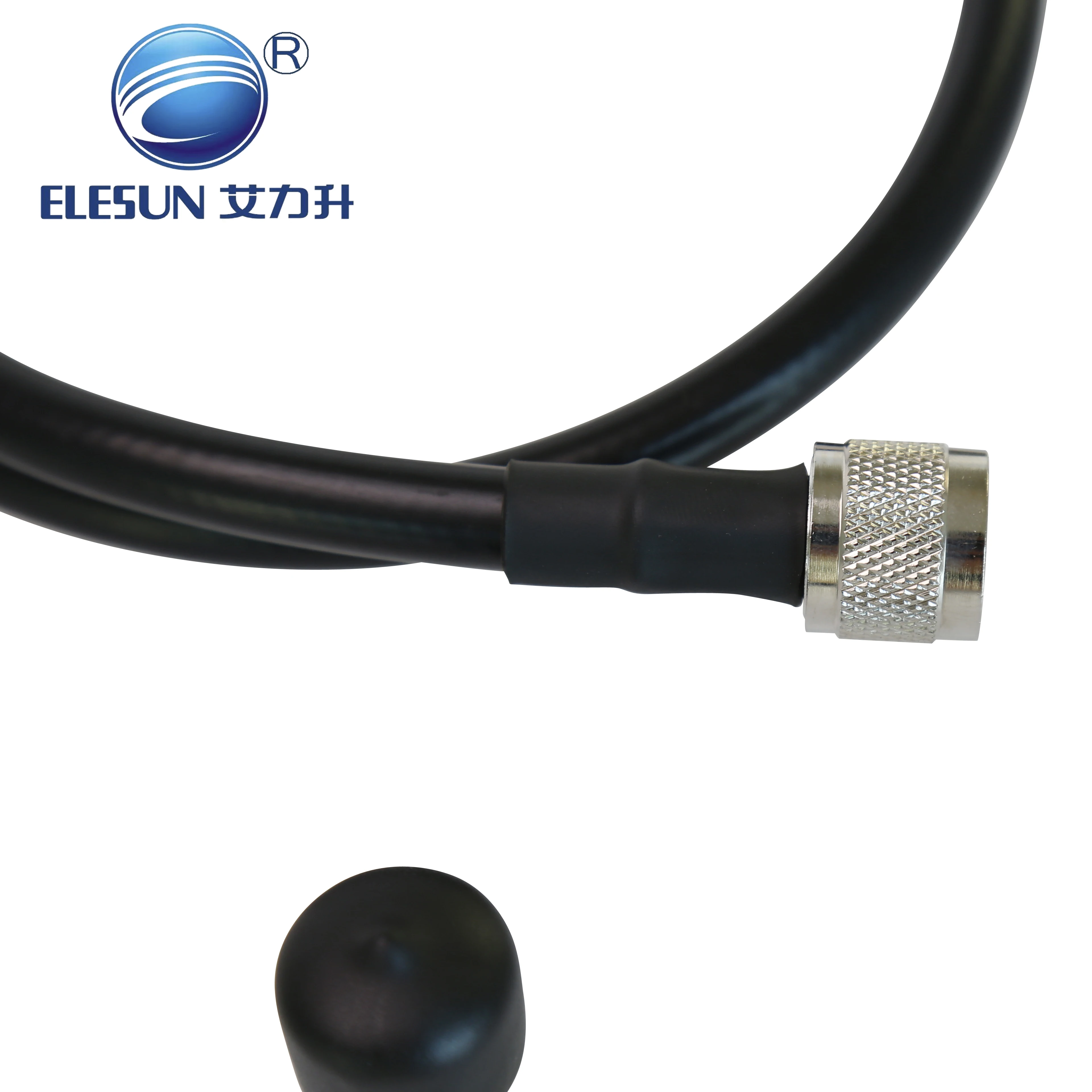

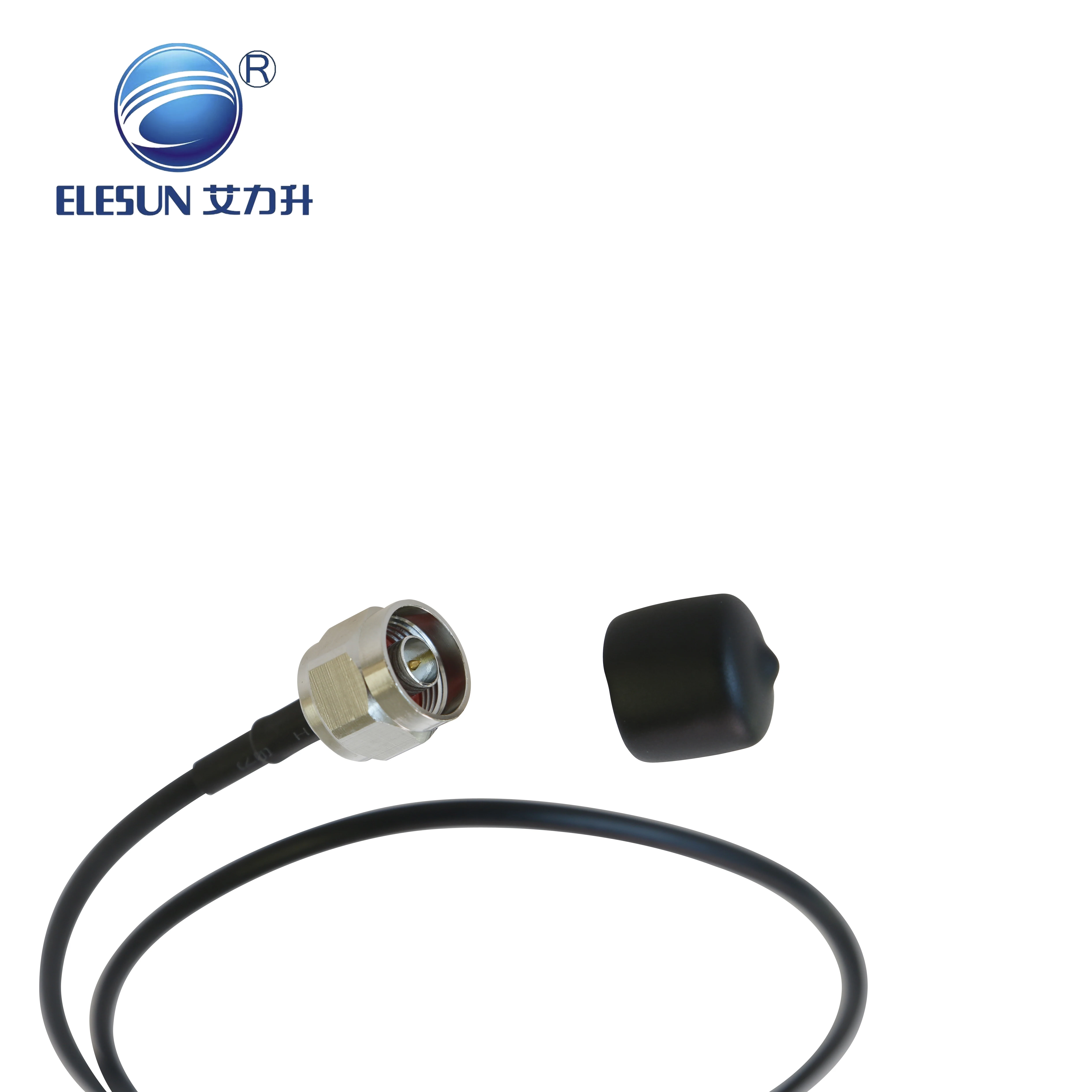

Factory OEM High Performance RF Cable Low Loss 50ohm ALSR240 ALSR300 ALSR400 ALSR500 ALSR600 RG8 Coaxial Cable

Get a Free Quote
Product Description
Factory OEM High performance RF Cable Low loss 50ohm ALSR240 ALSR300 ALSR400 ALSR500 ALSR600 RG8 Coaxial cable for communication

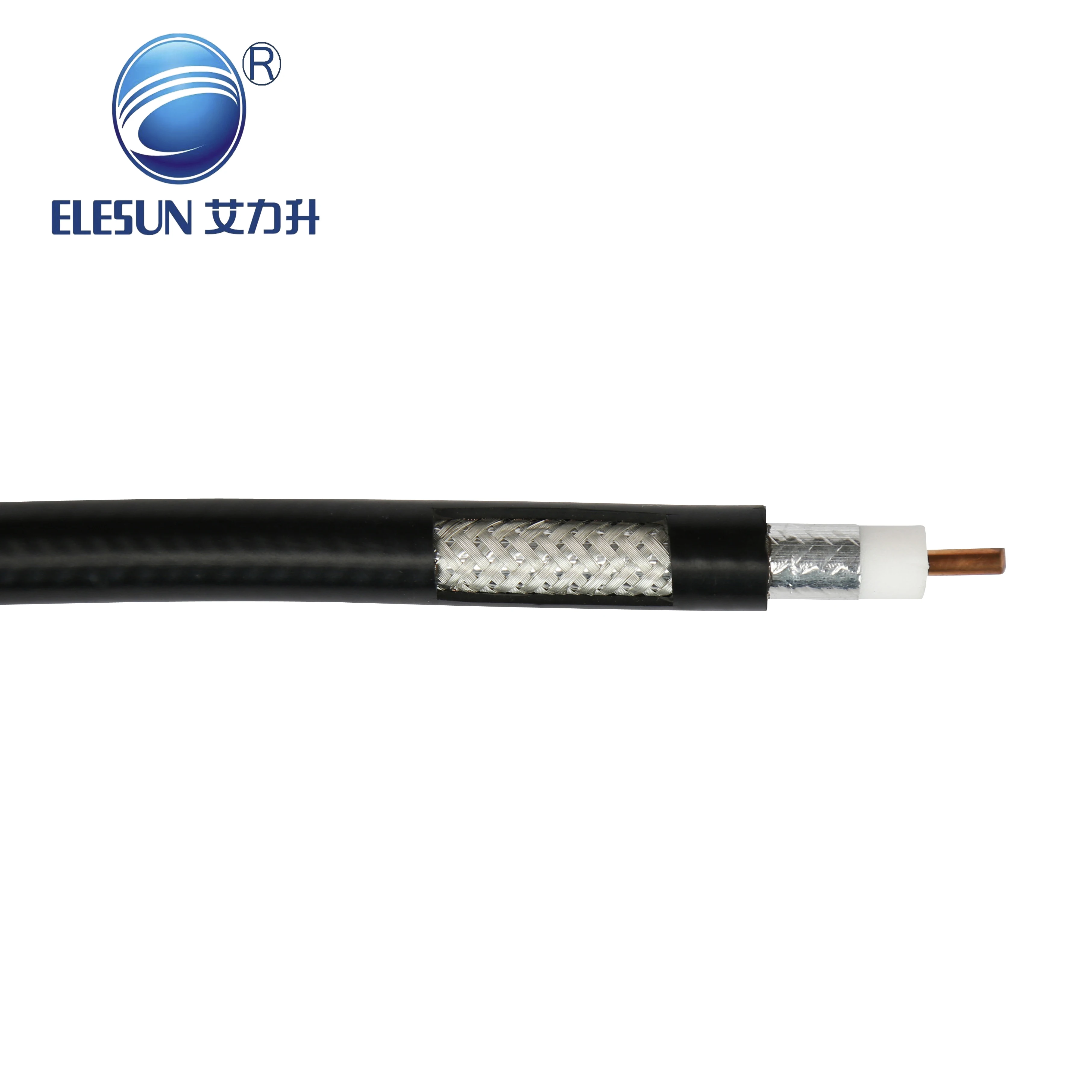

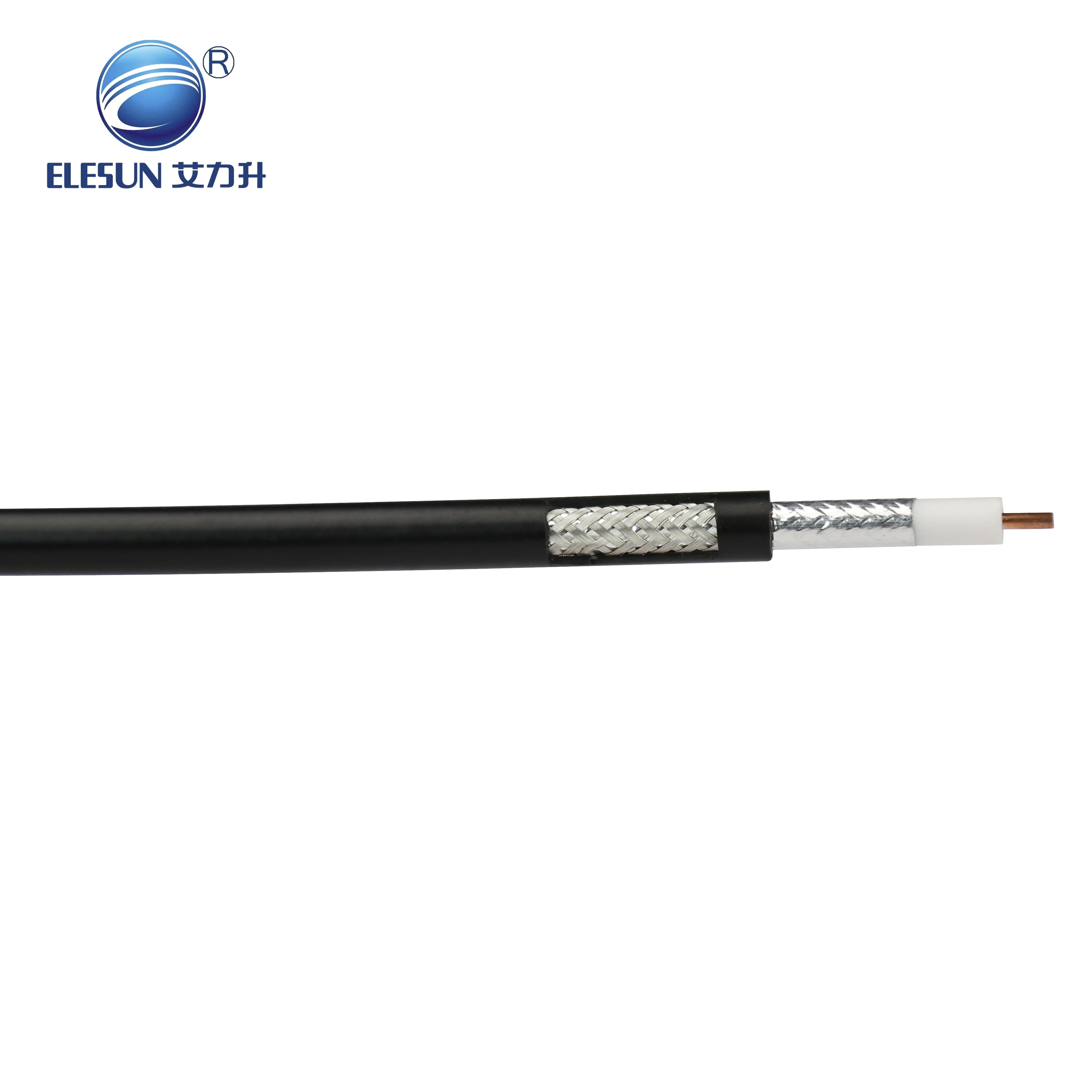

Description：
. Conductor:BC(Bare Copper)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White
Typical Application:
1.LSR240 is special for short antenna feeder runs Mobile Antennas.
2.LSR240 coax cable assembly can be used in wireless communications systems
3.Jacket: PE jacket is UV resistant for outer door use and PVC jacket for indoor use, LSZH jacket is environment friendly, it can be choose.

Best Feature:
1.LSR240 cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance.
2.Low Loss: Lowest loss of any flexible cable; comparable loss to semi-rigid cables
3.Spot light of the Aluminum foil between the insulation and braiding. It is material of PET, the Aluminum-PET composite tape is widely used in coaxial cable industry, the color of PET is usually blue or white(color is optional, no special function), the tape is self-adhesive, since the tape is with glue.AL/PET Tape (Aluminum Mylar Tape) is used for cable shielding as a shielding insulator when assembling electronic components. AL/PET Tapes provide more protection by increasing the metallic coverage without adding increased thickness to the diameter of the cable. It comes in 3 different colors: Dark Blue, Light Blue, and Silver.


LSR240 low loss coaxial cable specifications
Material of Inner Conductor
BC (Bare Copper)
Structure of Inner Conductor
1/1.42mm
Material of Insulation
FPE(Foam PE)
Diameter of Insulation
3.81mm
1st Shielding
Aluminum Tape
Material of Braiding(2nd Shielding)
TC (Tinned Copper)
Structure of Braiding(2nd Shielding)
112*0.12mm
Material of Jacket
PE, PVC, LSZH
Diameter of Jacket
6.10mm
Working temp
-40℃/80℃
Impedance
50Ω±2
Voltage
1500V
SWR(0-2500MHz)
≤1.2
Min.Bending Radius
12.7mm
Packing & Delivery
Company Profile
Q1: Are you a manufacture or a trading company?
A:We are a professional cable manufacture with more than 20 years production experience.

Q2:What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Cable Assembly,Network cable,electric wire,Network Cable.
We also provide cable assembly according to customers requirement.

Q3:What's your MOQ? Can you offer free samples?
A: Our MOQ is 2KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q4: What's your delivery time?
A:Normally, our delivery time is 7-10 days after received deposit or payment,it base on the quantity of the order.

Q5: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q6:What's your trade term?
A: We accept FOB ShangHai or Ningbo,Guanghzou,Shenzhen,CFR,CIF,EXW term

Q7: Where is your factory located? How can I visit there?
A: Our factory is located in Zhenjiang City,Jiangsu Province,China.
1 hour drive from Nanjing Airport.
3 hours drive or 1 and a half hour by high speed rail to railway station from shanghai.

Q8:Do you accept OEM/ODM?
A:Sure.we accept.

Why choose us:
1.We have more than 20 years experience for communication cables and cable assembly.
2.We own R&D team more than 10 engineers,give you strongest support !
3.Fast delivery time ,we have big capacity with short production time.
4.Factory directly sale - Most Competitive price than average level .
5.We have very strict quality control system during the whole production process.We always inspect all the goods before shipment.
6.IATF 16949 /UL certification approved.
