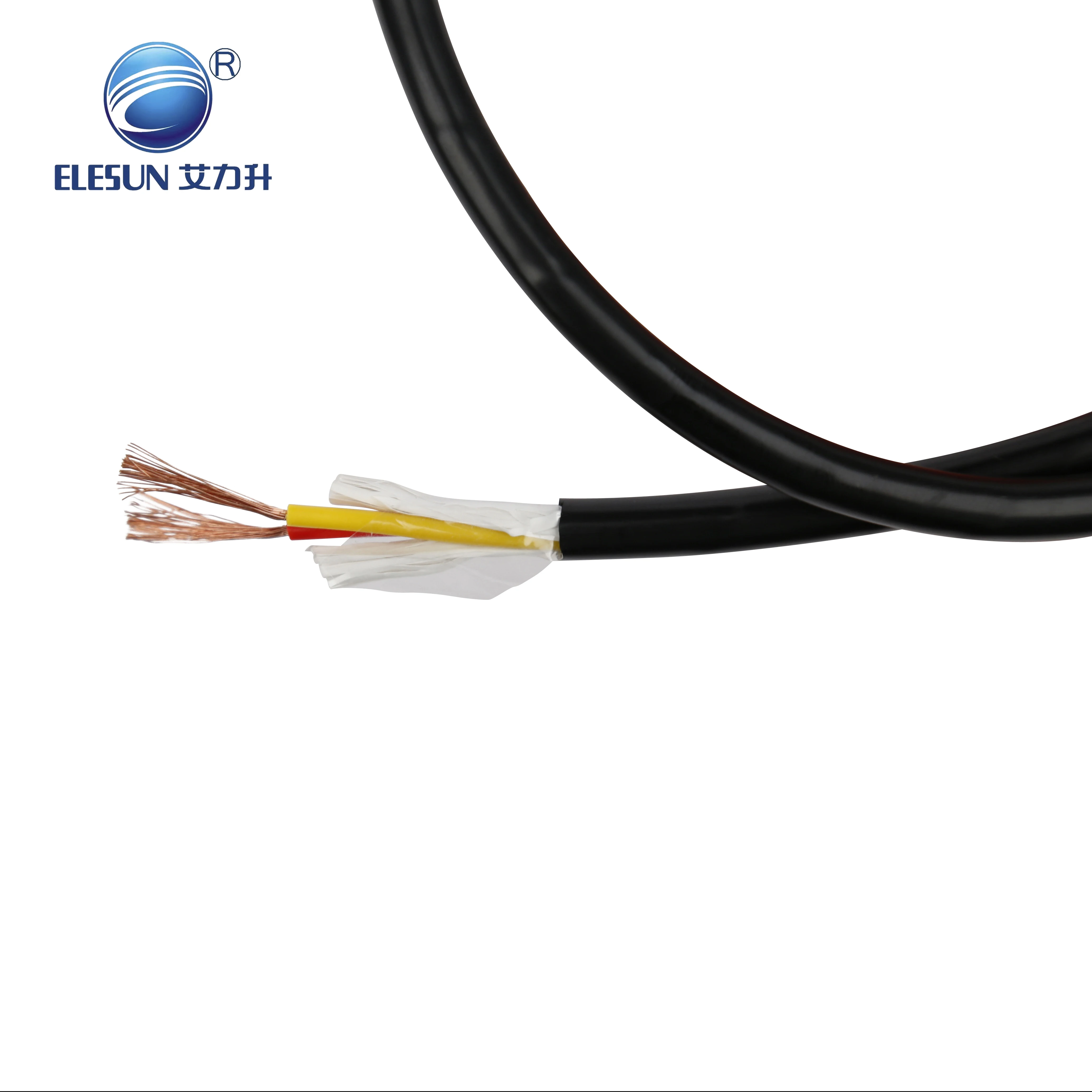

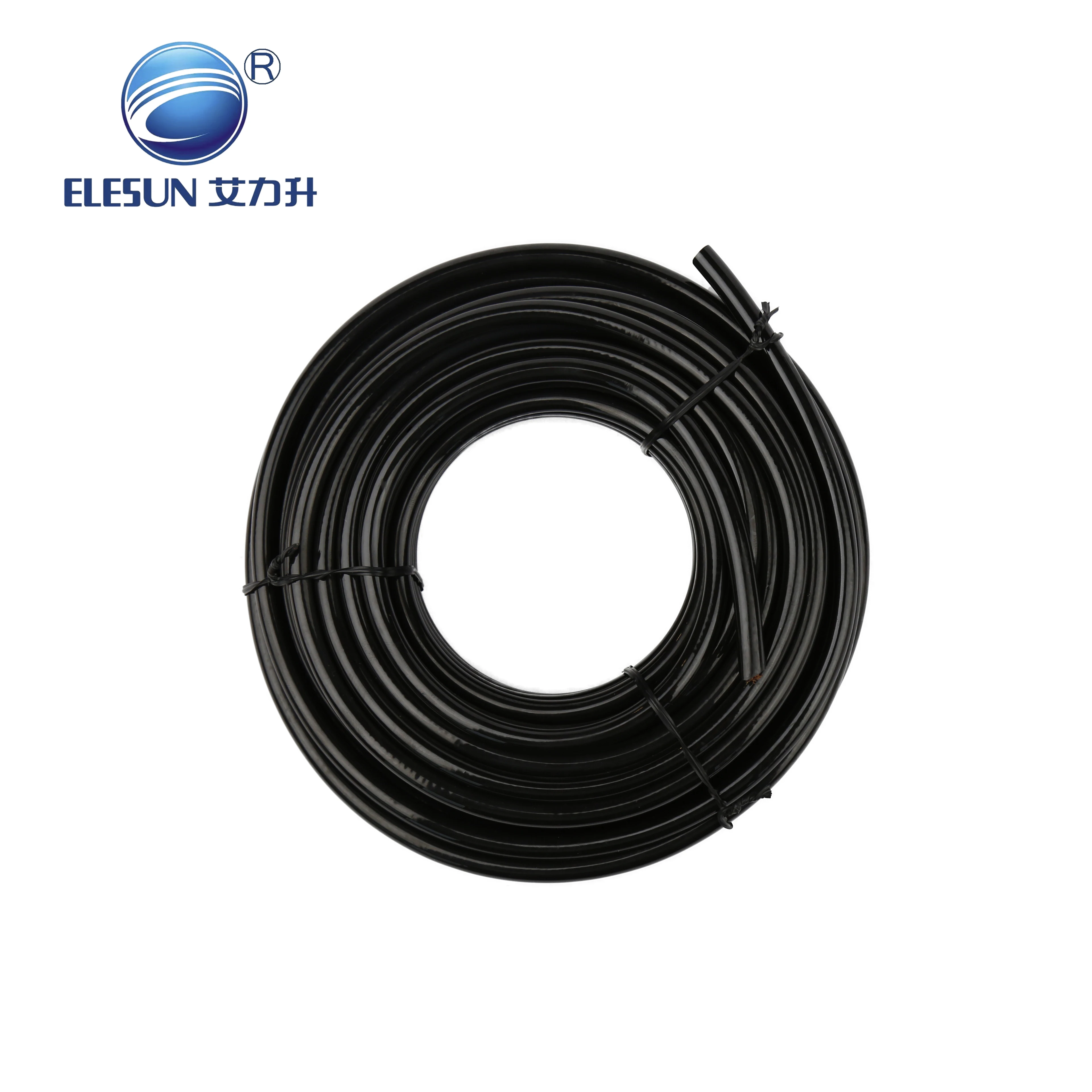

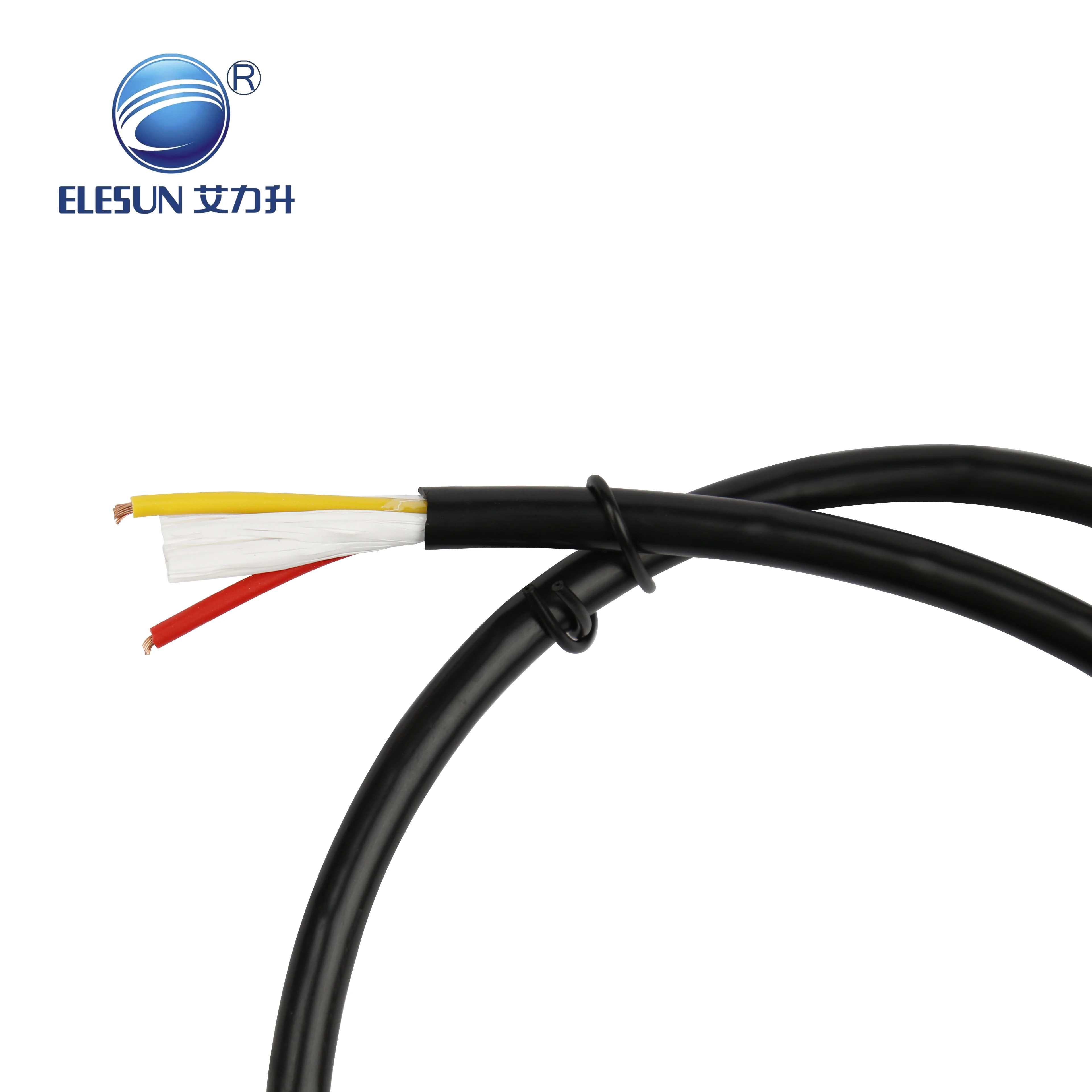

Factory OEM Good Performance Best Price 22AWG RS485 Cable Shielded Rvvp Cable for Communication System , China Factory OEM Good Performance Best Price 22AWG RS485 Cable Shielded Rvvp Cable for Communication System Manufacturers, Suppliers, Factory

Factory OEM good performance best price 22AWG RS485 cable shielded rvvp cable for communication system

coaxial cable 1.png

Description for RS485 cable

This product is suitable for indoor, pipeline and general industrial environment and other electronic computers and automatic connection cables for occasions requThe cable conductor tinned wire core insulation, polyethylene, polyethylene, high insulation resistance, voltage resistance, impact of small and medium dielectric constant temperature and variable frequency of loss is small, not only to meet the transmission performance requirements, but also to ensure that the service life of the cable.

The cable adopts the structure of the screen or the main screen, which can reduce the mutual crosstalk and external interference between the circuits, and can improve the transmission quality of the cable signals in one frequency. Special occasions can also be used as required to protect the armor layer, to enhance the impact resistance of cables.

iring high anti-interference.

AWG Sizes	Conductor		Insulation		Twisted Pair		Overall Shielding	Jacket
AWG Sizes	Roots/Diameter(mm)	O.D.	Thickness	O.D(mm)	O.D.	Shielding	Overall Shielding	Thickness	O.D.
1224AWG	7/0.20	0.60	0.4	1.40	2.80	Al Foil	Copper wire Braiding	1.0	5.5
2224AWG	7/0.20	0.60	0.4	1.40	2.80	Al Foil	Copper wire Braiding	1.0	8.6
3224AWG	7/0.20	0.60	0.4	1.40	2.80	Al Foil	Copper wire Braiding	1.0	9.0
4224AWG	7/0.20	0.60	0.4	1.40	2.80	Al Foil	Copper wire Braiding	1.0	9.9
1222AWG	7/0.25	0.75	0.5	1.75	3.50	Al Foil	Copper wire Braiding	1.0	6.2
2222AWG	7/0.25	0.75	0.5	1.75	3.50	Al Foil	Copper wire Braiding	1.0	10.0
3222AWG	7/0.25	0.75	0.5	1.75	3.50	Al Foil	Copper wire Braiding	1.2	10.9
4222AWG	7/0.25	0.75	0.5	1.75	3.50	Al Foil	Copper wire Braiding	1.2	12.0
1220AWG	7/0.30	0.90	0.6	2.10	4.20	Al Foil	Copper wire Braiding	1.0	6.9
2220AWG	7/0.30	0.90	0.6	2.10	4.20	Al Foil	Copper wire Braiding	1.2	11.8
3220AWG	7/0.30	0.90	0.6	2.10	4.20	Al Foil	Copper wire Braiding	1.3	12.6
4220AWG	7/0.30	0.90	0.6	2.10	4.20	Al Foil	Copper wire Braiding	1.3	13.9
1218AWG	7/0.40	1.20	0.75	2.10	4.20	Al Foil	Copper wire Braiding	1.0	8.1
2218AWG	7/0.40	1.20	0.75	2.10	4.20	Al Foil	Copper wire Braiding	1.3	14.4
3218AWG	7/0.40	1.20	0.75	2.10	4.20	Al Foil	Copper wire Braiding	1.3	15.2
4218AWG	7/0.40	1.20	0.75	2.10	4.20	Al Foil	Copper wire Braiding	1.3	16.8
