CCoaxial cable 305m 50 Ohm RG174 SMA MCX for antenna system

Product Description

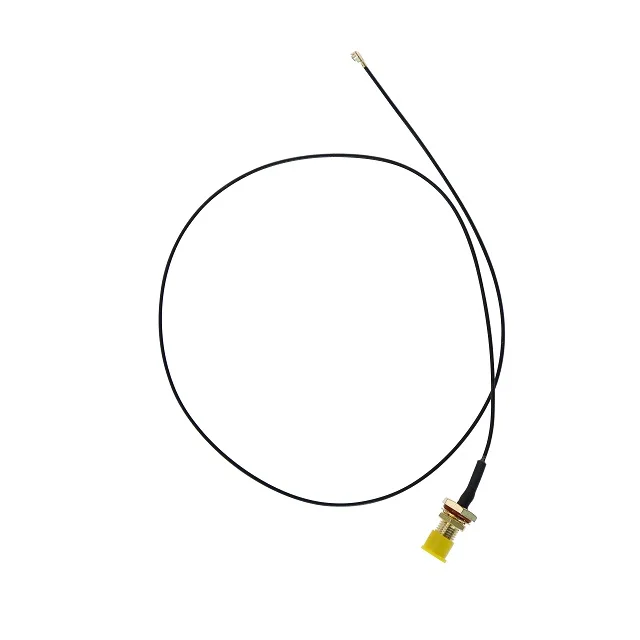

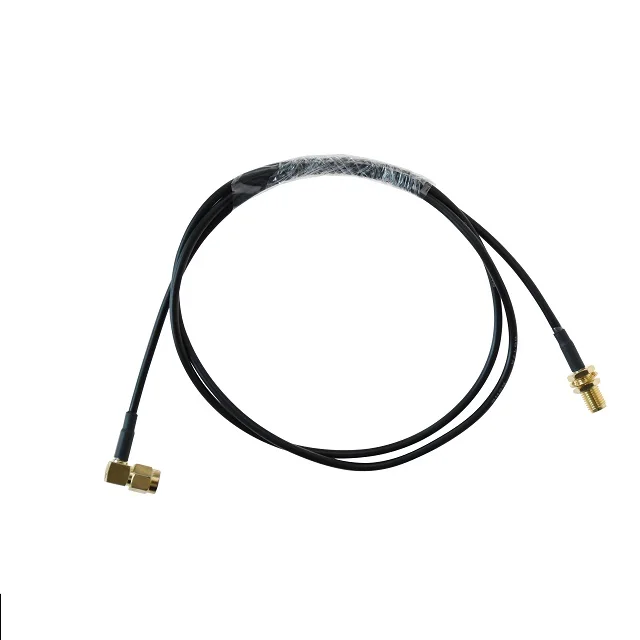

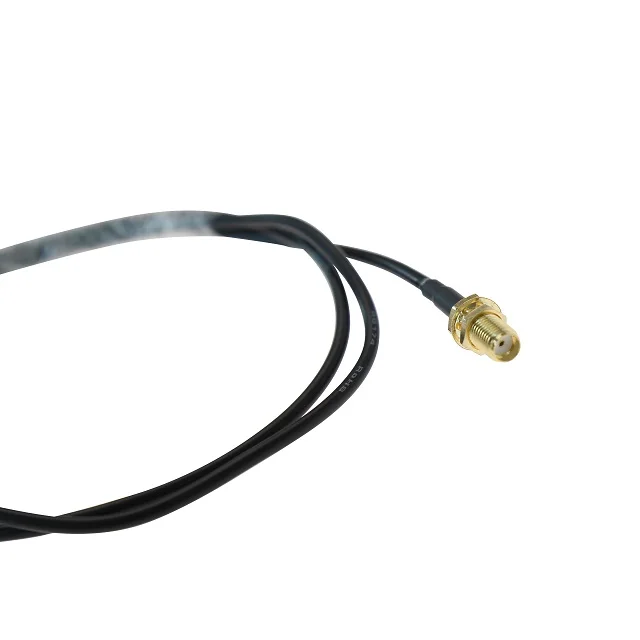

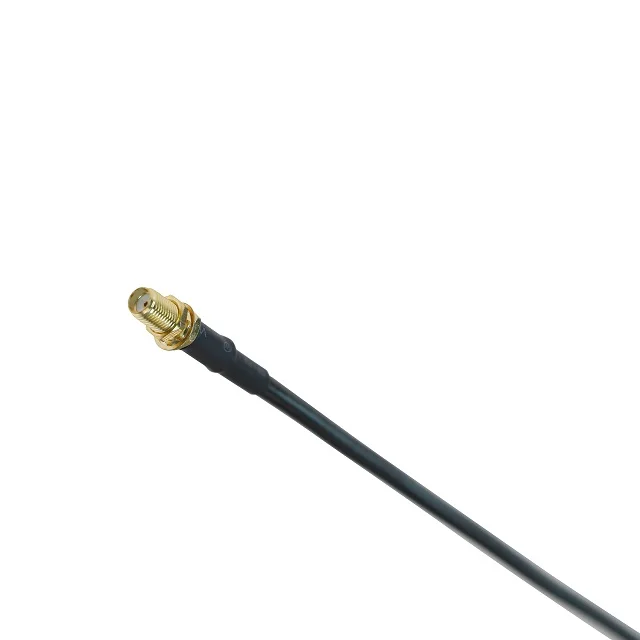

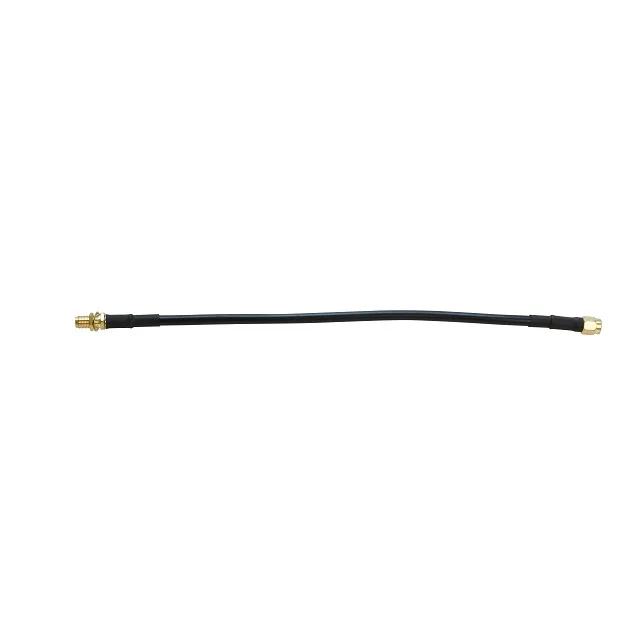

Coaxial cable assembly RG174 with SMA MCX connector for antenna system
Material of Inner Conductor	Cu, CCS, TC
Structure of Inner Conductor	7/0.16mm
Material of Insulation	Solid PE
Diameter of Insulation	1.52mm
Material of Braiding(Shielding)	Bare Copper, Tinned Copper
Structure of Braiding(Shielding)	80*0.10mm
Material of Jacket	PVC
Diameter of Jacket	2.8mm
Working temp	-40℃/80℃
Impedance	50Ω±2
Voltage	1500V
Weight	15KG/KM
