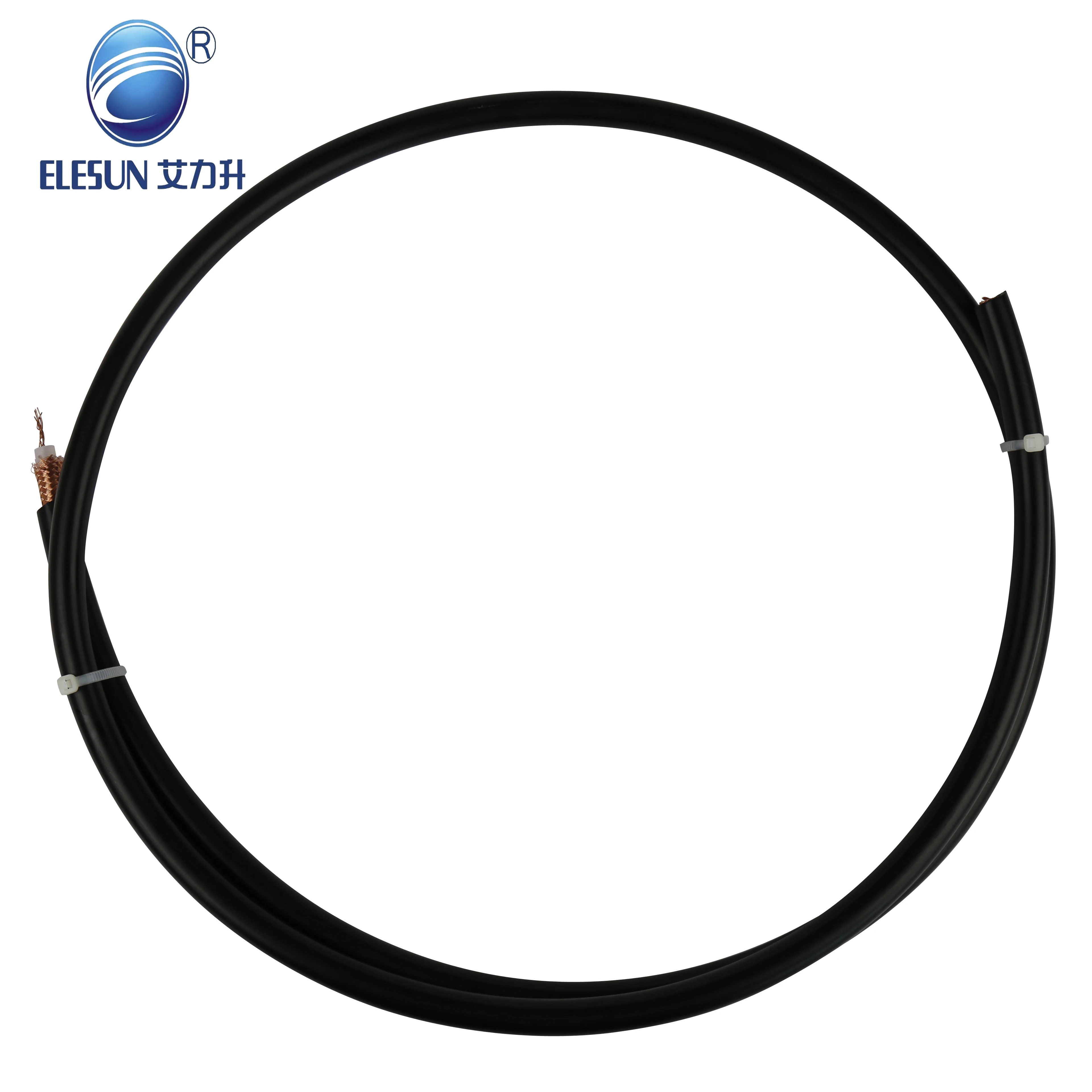

50ohm RG 213 Low Loss Coaxial Cable for Communication

Product Description

Specification

item	value
Model Number	RG213
Type	COAXIAL
Place of Origin	China
	Jiangsu
Brand Name	Elesun
Number of Conductors	7

50ohm Rg213 Low Loss Coaxial Cable for Communication

Detailed Description
1. Inner Conductor: CU
2. Dielectric: Foam/Solid PE
3. Shield: Bonded, Non-bonded, Single, Double
4. Braid wire material: CU, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.15mm, 0.16mm
6. Braid net: 96, 128 and more
7. Braid coverage: 80%, 90% and more
8. Jacket: PE/PVC
9. Jacket degree: 70,75
10. Customized requirement welcomed.

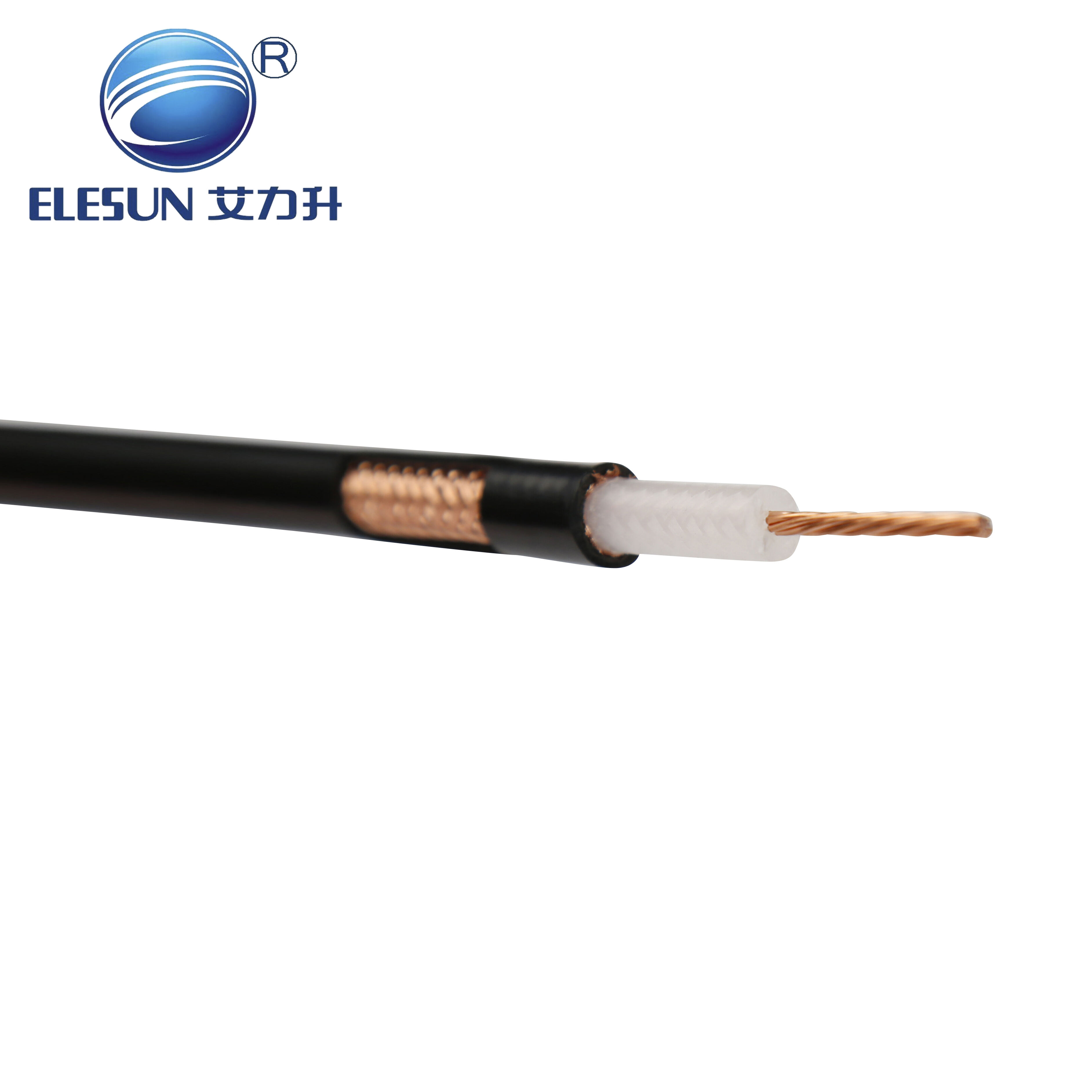

RG213/U coaxial cable specifications
Material of Inner Conductor	Bare Copper
Structure of Inner Conductor	7/0.75mm
Material of Insulation	Solid PE
Diameter of Insulation	7.25mm
Material of Braiding(Double Shielding)	Bare Copper
Structure of Braiding(Double Shielding)	144*0.15mm
Material of Jacket	PVC
Diameter of Jacket	10.20mm
Working temp	-40ºC/80ºC
Impedance	50Ω±2
Voltage	1500V
Weight	156KG/KM

2.Electrical Specifications
Characteristic Impedance(Ohm)	75
Nominal Velocity of Propagation (%)	85
Nominal Capacitance(pF/m)	50
Sparker Test(VAC)	4000
SRL(dB, min)	20

3.Application

The RG 213 coax cable is a low-loss coated cable that is noncontaminating. Coax Cables transmit radio signals, video signals, measurement signals and data signals and are often used in home entertainment systems. The RG 213 is generally considered the superior coax cable because it is low-loss and consists of seven braided strands of bare copper.
(1) CATV-community antenna television.

(2) CCTV-closed-circuit television.

(3) DBS-direct broadcasting satellite.

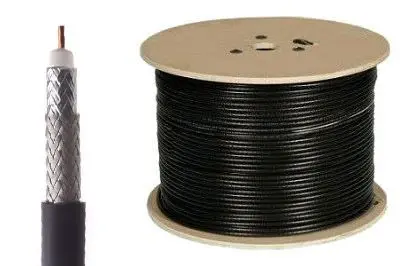

4. Packing
1) Packing Lengths: 100/roll, 200 m/roll, 300m/roll. 305m/roll

2) Inner Packing: Wooden reel, plastic reel, and paper reel

3) Outer Packing: Carton box, pull out box, pallet available

4) Other packing available according to clients' request

Packing & Delivery

1) Packing Lengths: 200m/roll, 305m/roll,1000m/drum,Other lengths available according to client's request; 2) Inner packing: Wooden reel, plastic reel available. 3) Outer packing: Cardboard box, pallet customers'request available. 4) Other packing available according to client's request. Product Origin: China

Company Profile

Jiangsu AiLiSheng Cable Co., Ltd. is a professional company in researching and manufacturing coaxial cables and signal control cables. Our products are radio-frequency coaxial cables (SYV, SYWV, RG, SFF, FB series), electronic cables (UL1007, 1015, 1069 series), control cables (KVV, KVVR, KVVRP, KVVRP3 series), power cables (VV, YJV series), military high-temperature wires (AF, FF46 series), installation wires (BV, BVR, AV, AVR series), nylon-jacket cables (THHN/THWN series ,FVN series, BVN series), low-smoke no-halogen inflaming retarding cables, refractory cables used in nuclear power station, computer cables, compensating leads used for thermocouple and compensating cables. At the same time, we can design and produce cables for special purposes according to the standards of IEC, MIL, BS, JIS, VDE, and etc.

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2000,sell to Domestic Market(50.00%),Mid East(12.00%),Mid East(12.00%),North America(10.00%),Central America(7.00%),South America(7.00%),Western Europe(4.00%),Northern Europe(4.00%),Western Europe(4.00%),Northern Europe(4.00%),Oceania(3.00%),Southeast Asia(3.00%),Oceania(3.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Coaxial Cable,Electric Cable

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

If you ought to be looking for a cable that's high-quality for coaxial communication functions, look no more compared to the 50ohm RG 213 Low Loss Cable. This reliable cable is resilient as well as developed towards meet the requirements connected with quantity of requests, coming from amateur broadcast lovers towards broadcasters that are experts.

Produced coming from costs products, this coaxial cable has excellent efficiency and low authorize loss, creating it perfect for long-distance transmissions. Through possessing a placed resistance of fifty ohms, it is perfect for a choice that's wide and devices, coming from broadcasts as well as stereo towards video clip gear box aerials and equipment.

The 50ohm RG 213 Low Loss Cable is produced possessing a dual protected building that offers resistance outdoors indicator deterioration and disturbance. This protecting is comprised of copper intertwine and a lightweight aluminum which is resilient and truly collaborate to avoid disturbance off their indicators, broadcast electro-magnetic markets, and waves.

This high-quality cable has a low loss attenuation, significance it offers very little authorize of loss although the indicator journeys with the cable. This attenuation is low consequently of cable's high-quality as well as low-loss dielectric product, which maintains the authorize solid and unobstructed over longer ranges.

The 50ohm RG 213 Low Loss Cable is ideal for experts and novices as well that require a sensible, dependable, and cable along with high-performance for coaxial communication requests. This cable is actually a leading option due to the constant and reliable efficiency be it for amateur broadcast terminals, transmitting, or even telecom bodies.
