Product Description

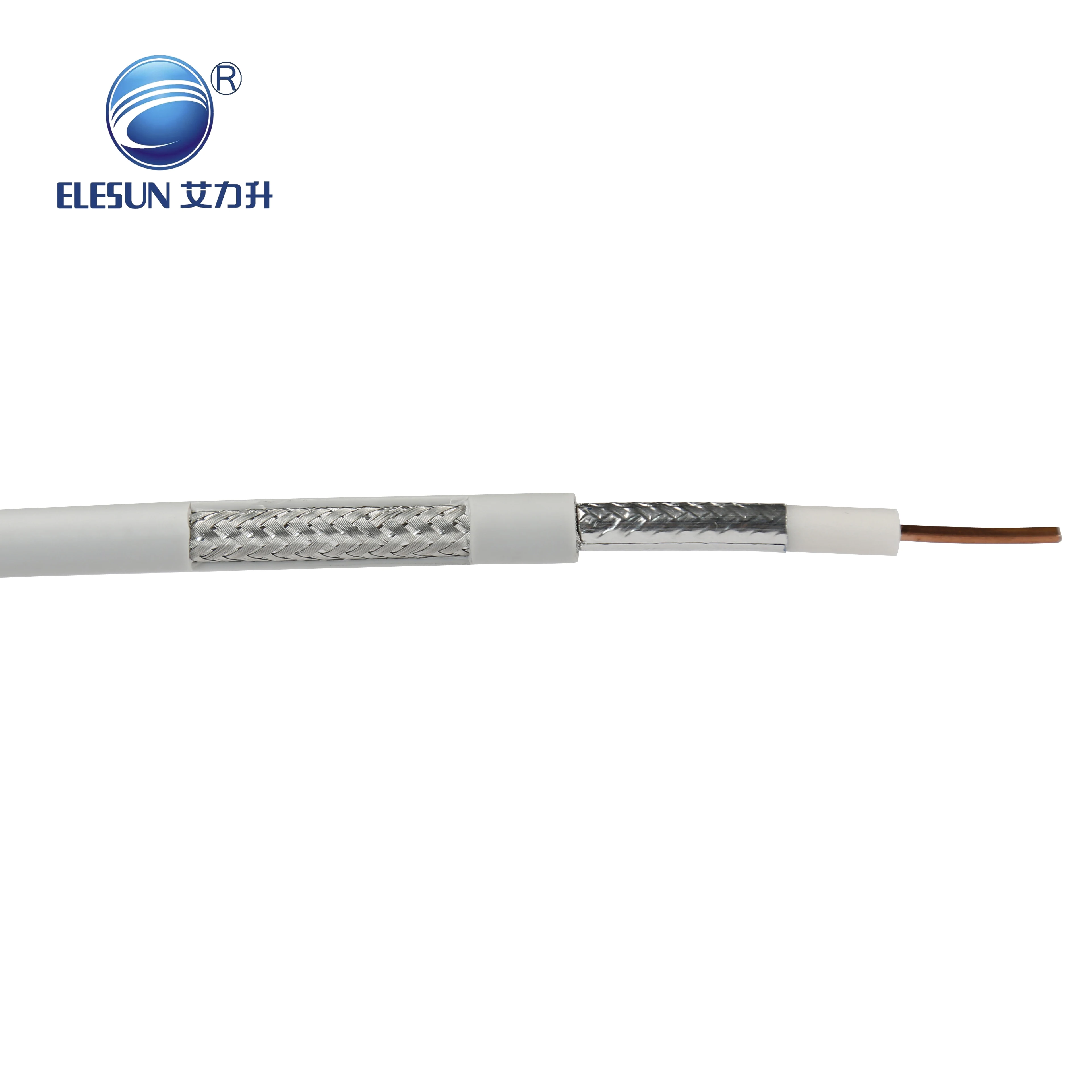

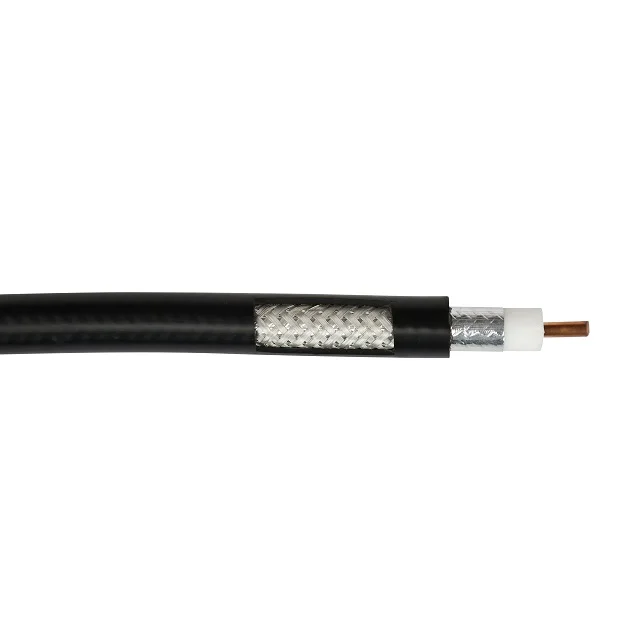

50Ohm Low Loss ALSR195 ALSR240 ALSR400 ALSR600 cable assembly

Description：
. Conductor:BC(Bare Copper)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PVC, LSZH
. Color: Black,White

Typical Application:
1ALSR195（LMR195）coaxial cable is widely used for any application such as WLL, GPS, LMR, WLAN, WISP, SCADA, Mobile Antennas
2.ALSR195 cable assembly can be used in wireless communications systems

Best Feature:
1.ALSR195(LMR195) cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance.

2. Low Loss: Lowest loss of any flexible cable; comparable loss to semi-rigid cables, high shielding at reasonable cost
3.LMR series of coaxial cable is most suitable for interconnect applications.

Quality Control: The laboratory is equipped with 20GHz Agilent net-work analyzer, multiband inter-modulation instrument and other 30 sets of testing machines, which ensure the quality of products.The products are 100% strict quality control during the process, carefully inspected for each batch, we can also provide the inspection report for you.

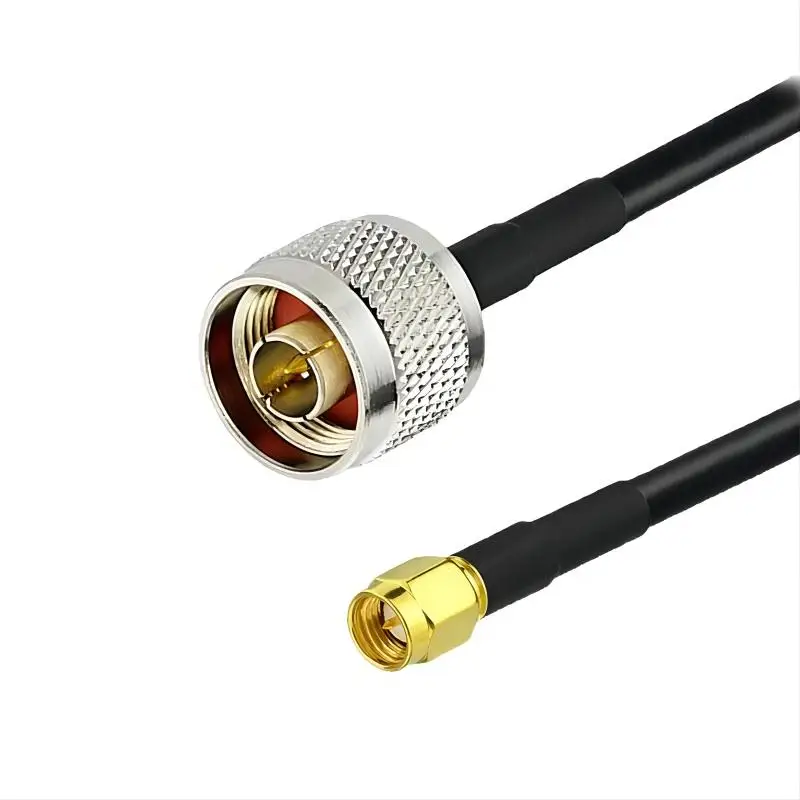

Custom Service: We also supply ALSR195 cable assembly with typical types of connectors such as TNC, N, BNC and 7/16 DIN

ALSR195(LMR195) low loss coaxial cable specifications
Material of Inner Conductor	BC (Bare Copper)
Structure of Inner Conductor	1/0.94mm
Material of Insulation	Foam PE
Diameter of Insulation	2.80mm
1st Shielding	Aluminum Tape
Material of Braiding(2nd Shielding)	TC (Tinned Copper)
Structure of Braiding(2nd Shielding)	96*0.12mm
Material of Jacket	PVC, LSZH
Diameter of Jacket	4..95mm
Working temp	-40℃/80℃
Impedance	50Ω±2
Voltage	1000V
SWR(0-2500MHz)	≤1.2
Min.Bending Radius	12.7mm

Application:

Mainly be used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, aeronautics and space industry, precise instrument.

Packing & Delivery

Company Profile

Q1: Are you a manufacture or a trading company?
A:We are a professional cable manufacture with more than 20 years production experience.

Q2:What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Cable Assembly,Network cable,electric wire,Network Cable.
We also provide cable assembly according to customers requirement.

Q3:What's your MOQ? Can you offer free samples?
A: Our MOQ is 2KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q4: What's your delivery time?
A:Normally, our delivery time is 7-10 days after received deposit or payment,it base on the quantity of the order.

Q5: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q6:What's your trade term?
A: We accept FOB ShangHai or Ningbo,Guanghzou,Shenzhen,CFR,CIF,EXW term

Q7: Where is your factory located? How can I visit there?
A: Our factory is located in Zhenjiang City,Jiangsu Province,China.
1 hour drive from Nanjing Airport.
3 hours drive or 1 and a half hour by high speed rail to railway station from shanghai.

Q8:Do you accept OEM/ODM?
A:Sure.we accept.

Why choose us:
1.We have more than 20 years experience for communication cables and cable assembly.
2.We own R&D team more than 10 engineers,give you strongest support !
3.Fast delivery time ,we have big capacity with short production time.
4.Factory directly sale - Most Competitive price than average level .
5.We have very strict quality control system during the whole production process.We always inspect all the goods before shipment.
6.IATF 16949 /UL certification approved.
