50 Ohms RF Coaxial Cable 10D-FB(ALSR600) for radio antenna system , China 50 Ohms RF Coaxial Cable 10D-FB(ALSR600) for radio antenna system Manufacturers, Suppliers, Factory

Product Description

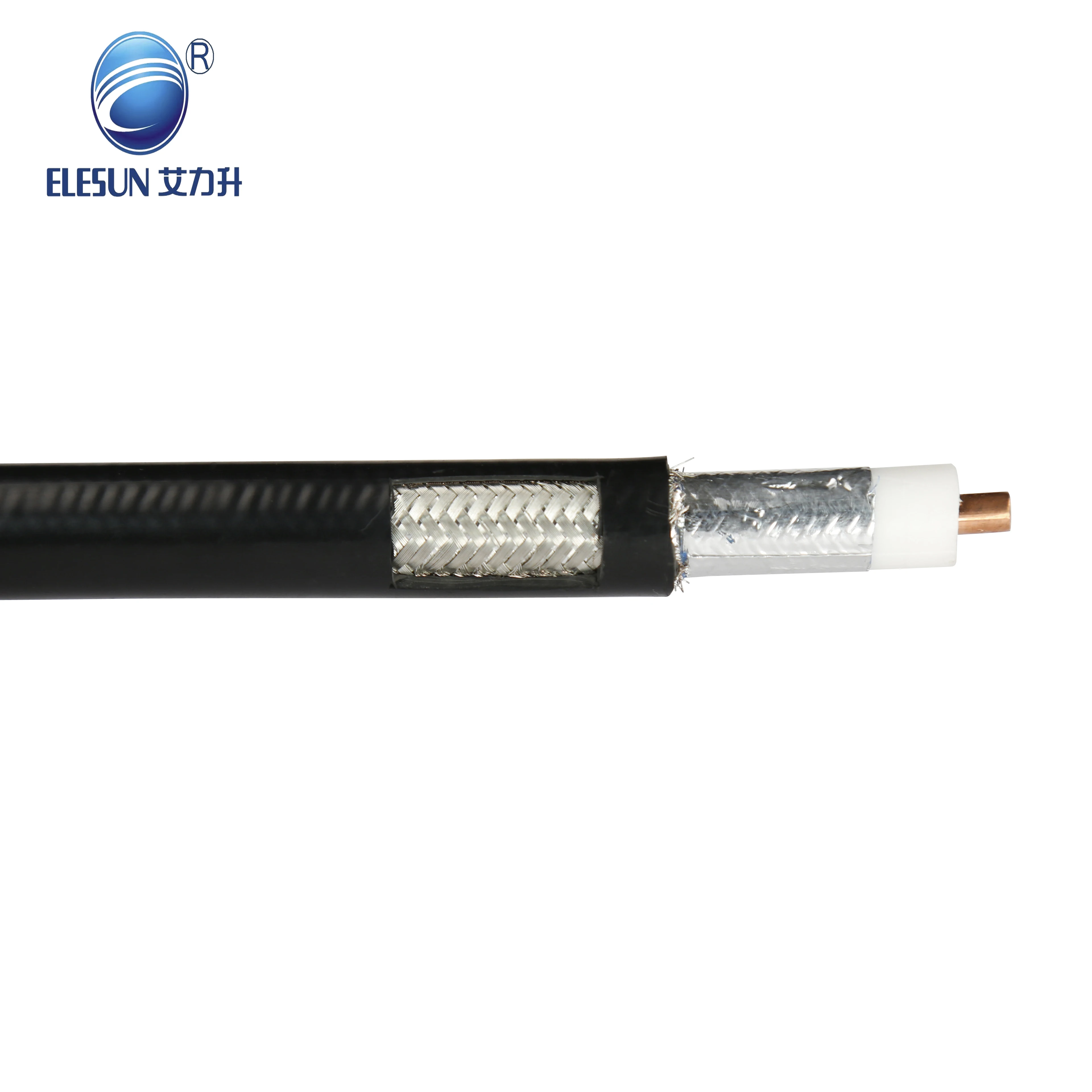

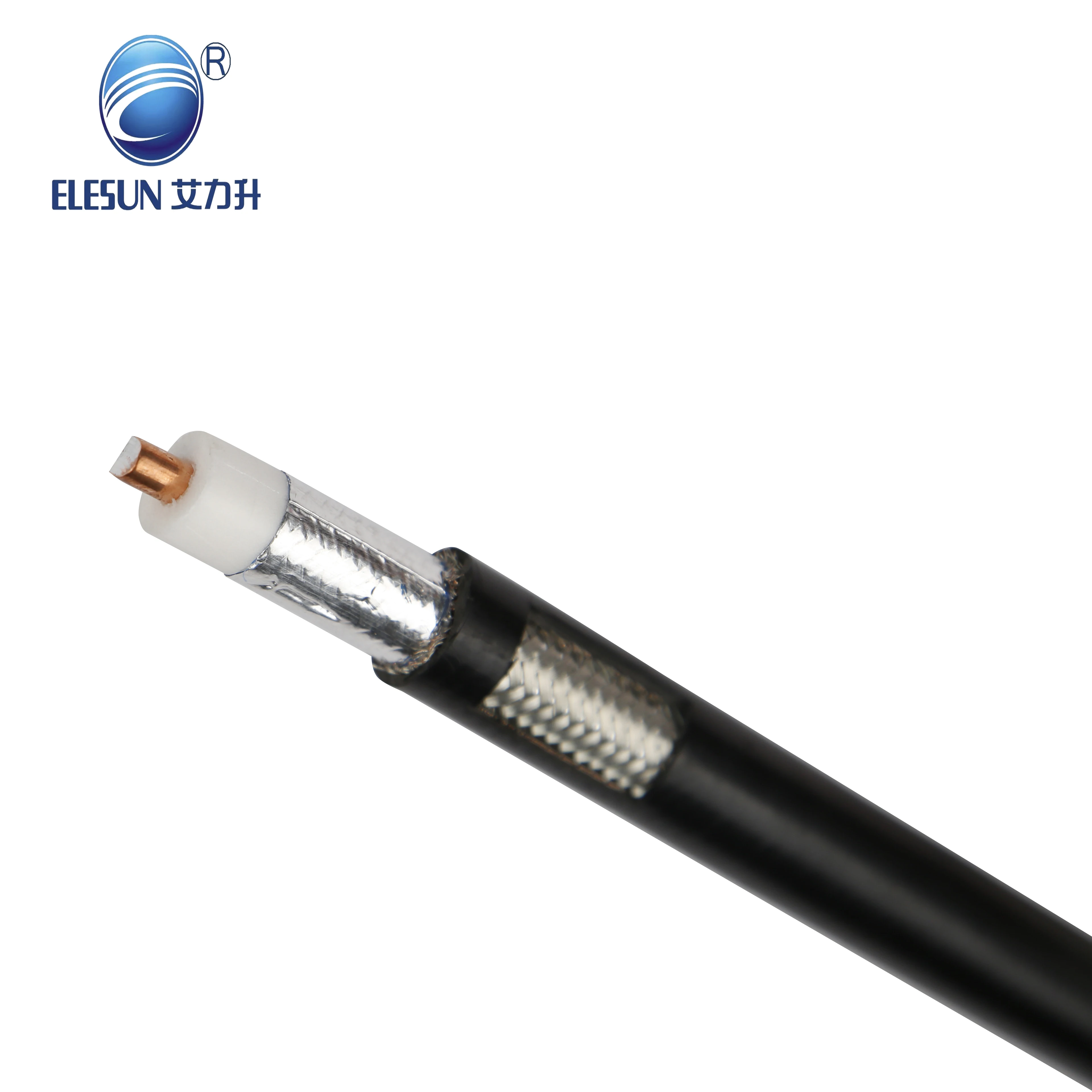

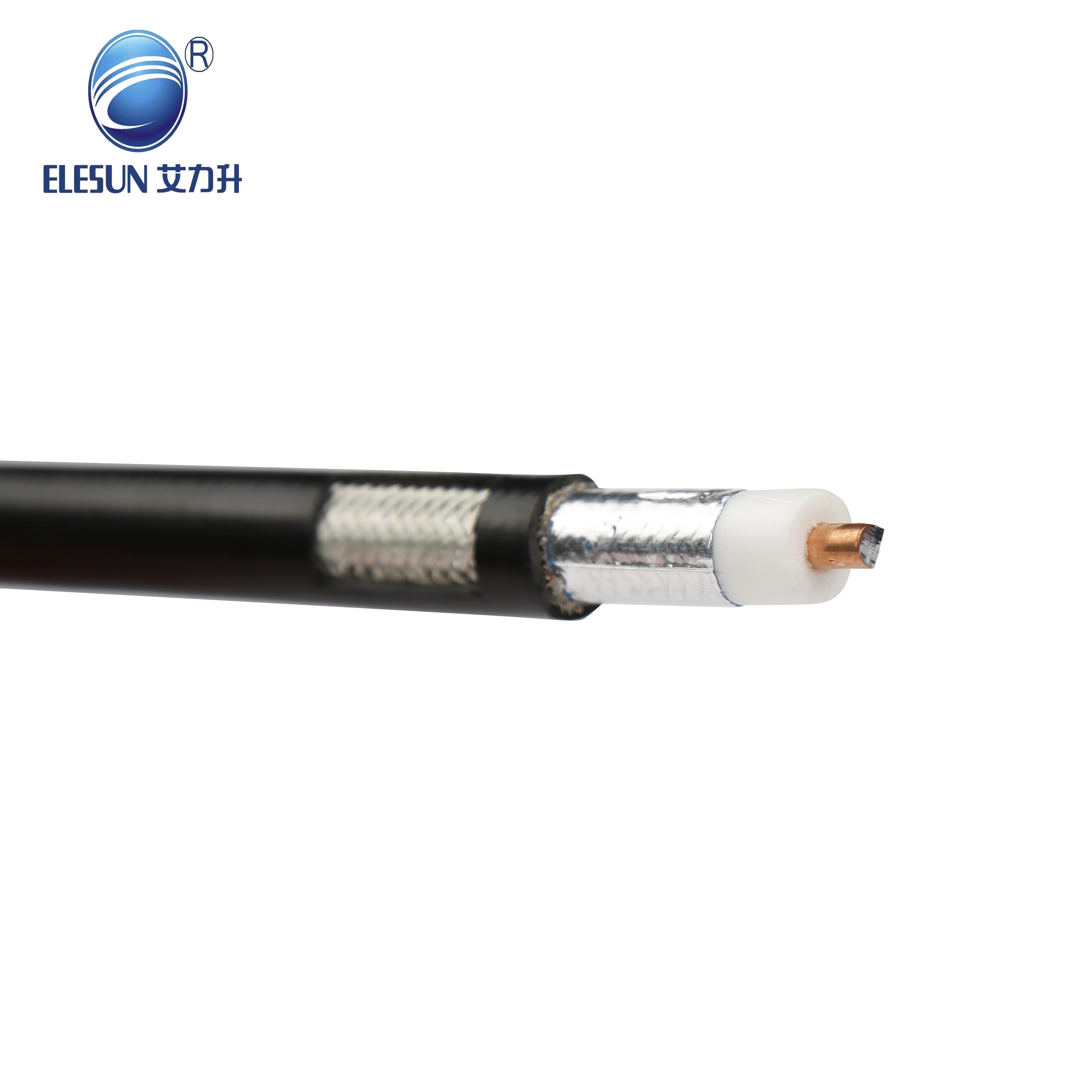

50 Ohms RF Coaxial Cable 10D-FB(ALSR600) for radio antenna system

Description：
. Conductor :CCA(Copper Clad Aluminum)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White

Typical Application:
1 * LS600 is the same specification as LMR600, generallydesigned for jumper assemblies in wireless communications systems
2* LSR600 has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different environment
3*.LSR600(LMR600) is equivalent to 12D-FB foam PE coaxial cable

Best Feature:
1. LSR600/ LMR600 cable features a flexible outer conductor, the bending radius is better than the cable in similar size.
2 . Low Loss: Lowest loss of any flexible cable; comparable loss to semi-rigid cables

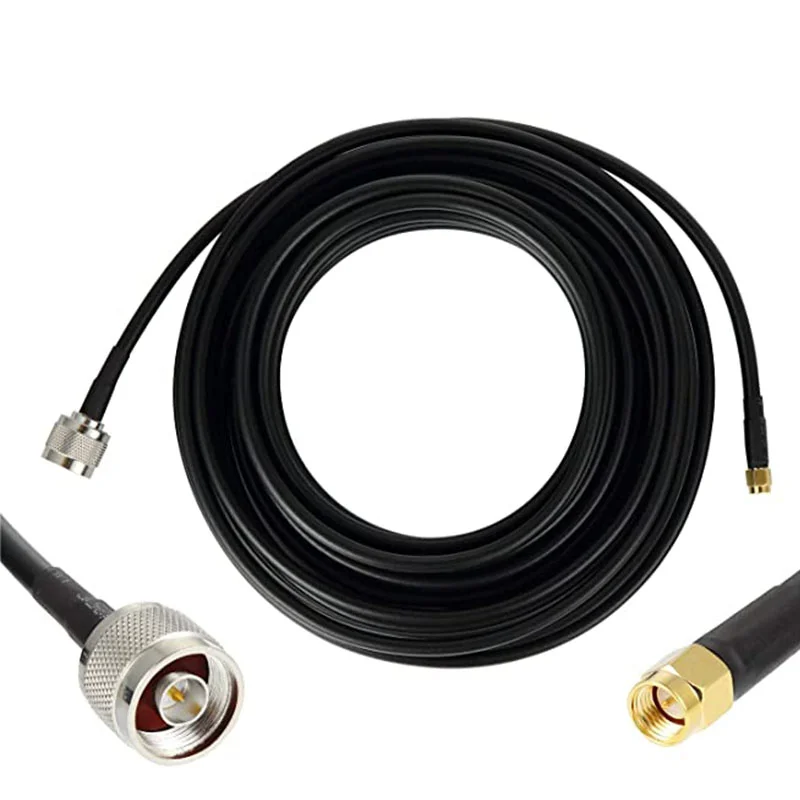

Please contact us for LSR600 cable assembly with N connector to SMA connector

Material of Inner Conductor	CCA, BC
Structure of Inner Conductor	1/4.47mm
Material of Insulation	FPE(Foam PE)
Diameter of Insulation	11.5mm
1st Shielding	Aluminum Tape
Material of Braiding(2nd Shielding)	TC (Tinned Copper)
Structure of Braiding(2nd Shielding)	168*0.18mm
Material of Jacket	PVC,PE, FRPE, FRPVC
Diameter of Jacket	15.0mm
Working temp	-40℃/80℃
Impedance	50Ω±2
Voltage	4000V
SWR(0-2500MHz)	≤1.2
