50 Ohm 8d-Fb Low Loss Coaxial Cable for Communication

Product Description

Specification

item	value
Model Number	8D-FB
Type	COAXIAL
Place of Origin	China
Brand Name	Elesun
Number of Conductors	1
Material of Jacket	PVC, PE, LSZH,Fr-LSZH
Diameter of Insulation	7.80mm
1st Shielding	Aluminum Tape
Material of Inner Conductor	Bc (Bare Copper)
Diameter of Jacket	11.10mm
Wire Core Material	Bare Copper Wire
Material of Braiding(2ND Shielding)	Tc (Tinned Copper)
Structure of Inner Conductor	1/2.80mm
Material of Insulation	Fpe(Foam PE)
Structure of Braiding(2ND Shielding)	128/0.15mm

Certification	CE, ISO, RoHS, CCC
Swr(0-2500MHz)	≤1.2
Working Temp	-20ºC70ºC
Impedance	50Ω±2
Transport Package	250m/Roll/CTN
Trademark	Elesun

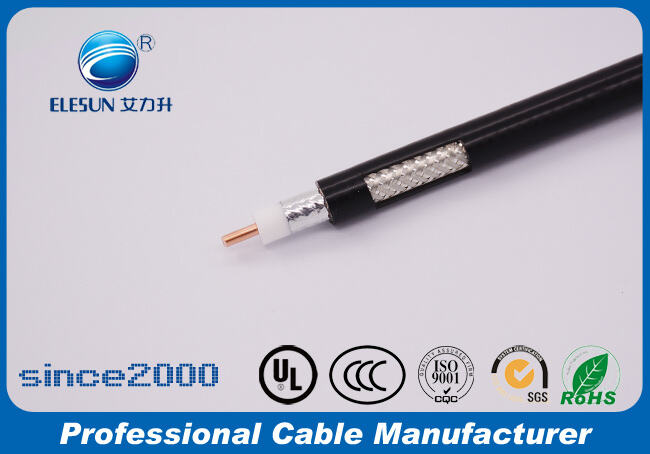

50 Ohm Low Loss Coaxial Cable 8D-FB Communication Cables

Description:
. Conductor : Bare Copper
. Insulation Material:  Foam PE
.1st Shielding:  Aluminum Tape
.2nd Shielding:  Tinned Copper Braiding
. Impedance: 50Ω±2
.Jacket:  PE, PVC, LSZH
. Color:  Black,White

Typical Application:

1. SYWV50-8 is the same specification as 8D-FB coaxial cable Kansai standard, generally designed for jumper assemblies in wireless
communications systems
2. SYWV50-8(8D-FB) has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different
environment
3. 8D-FB coaxial cable is used in digital microwave communication system, and aeronautics and space industry, precise instrument

Best Feature:
SYWV50-8(8D-FB) cable features foam PE dielectric low loss coaxial cable for RF usage.

Custom Service:
Please contact us for 8D-FB cable assembly with N connector to SMA connector

Packing & Delivery

Company Profile

Jiangsu AiLiSheng Cable Co., Ltd. is a professional company in researching and manufacturing coaxial cables and signal control cables. Our products are radio-frequency coaxial cables (SYV, SYWV, RG, SFF, FB series), electronic cables (UL1007, 1015, 1069 series), control cables (KVV, KVVR, KVVRP, KVVRP3 series), power cables (VV, YJV series), military high-temperature wires (AF, FF46 series), installation wires (BV, BVR, AV, AVR series), nylon-jacket cables (THHN/THWN series ,FVN series, BVN series), low-smoke no-halogen inflaming retarding cables, refractory cables used in nuclear power station, computer cables, compensating leads used for thermocouple and compensating cables. At the same time, we can design and produce cables for special purposes according to the standards of IEC, MIL, BS, JIS, VDE, and etc.

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2000,sell to Domestic Market(50.00%),Mid East(12.00%),Mid East(12.00%),North America(10.00%),Central America(7.00%),South America(7.00%),Western Europe(4.00%),Northern Europe(4.00%),Western Europe(4.00%),Northern Europe(4.00%),Oceania(3.00%),Southeast Asia(3.00%),Oceania(3.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Coaxial Cable,Electric Cable

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

COAXIAL CABLE

The 50 Ohm 8d-Fb Low Loss Coaxial Cable for Communication is the perfect product for your needs if you should be in need of a trusted and top-quality coaxial cable for communication purposes. This cable is manufactured specially to make certain clear and uninterrupted interaction for a variety of settings, including telecommunications, radio communication, along with other applications that require efficient data transfer or sign transmission.

At the core associated with 50 Ohm 8d-Fb Low Loss Coaxial Cable for Communication is just a solid copper conductor that allows for efficient electric conductivity. Additionally, the cable is sold with a dielectric foam which enables you to minimize sign loss to amplify its performance. The 50 Ohm 8d-Fb Low Loss Coaxial Cable also offers a durable, high-quality jacket produced from Polyvinyl Chloride (PVC), which offers great security in harsh climate and other ecological conditions.

The 50 Ohm 8d-Fb Low Loss Coaxial Cable for Communication has a low attenuation which is made to help keep constant signal quality at long distances. This coaxial cable provides excellent protection against electromagnetic disturbance which could disrupt communication insurance firms a dual shield design. This causes it to be well suited for used in high-traffic areas, such as for example airports, hospitals, schools, as well as other environments that are busy.

The 50 Ohm 8d-Fb Low Loss Coaxial Cable for Communication is suitable for many different communication devices, including repeaters, antennas, along with other communication equipment. The cable also features N-type connectors that are meant to guarantee a protected and stable connection to your communication equipment.

It is possible to trust the 50 Ohm 8d-Fb Low Loss Coaxial Cable for Communication by Coaxial Cable name brand to offer with regards to product quality. This cable is manufactured utilizing the quality materials that are greatest, that will be tested to ensure it satisfies the industry's strictest requirements for performance and dependability. The result is truly a cable providing you with stable, high-quality performance, making certain your interaction needs are met.
