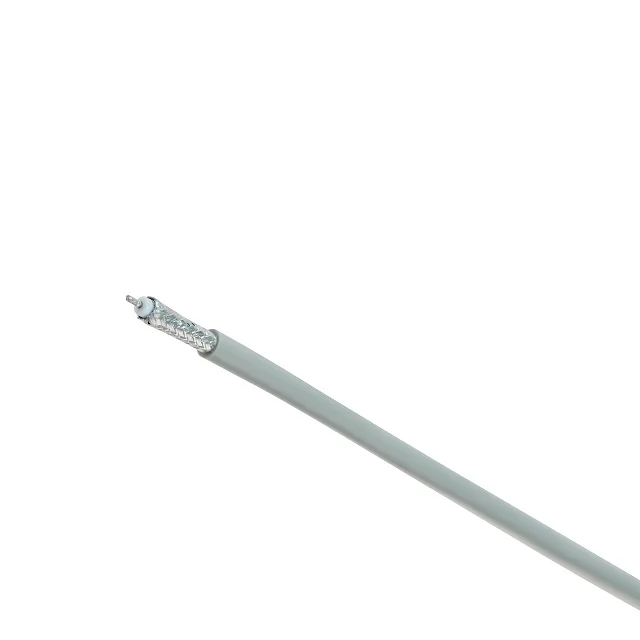

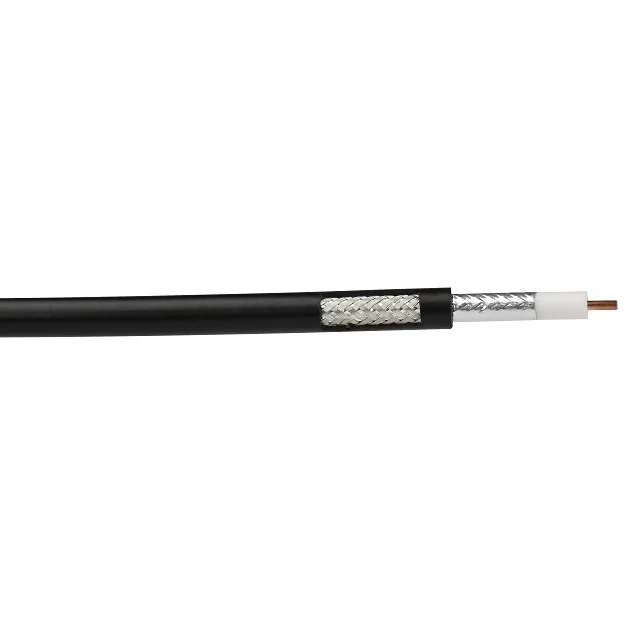

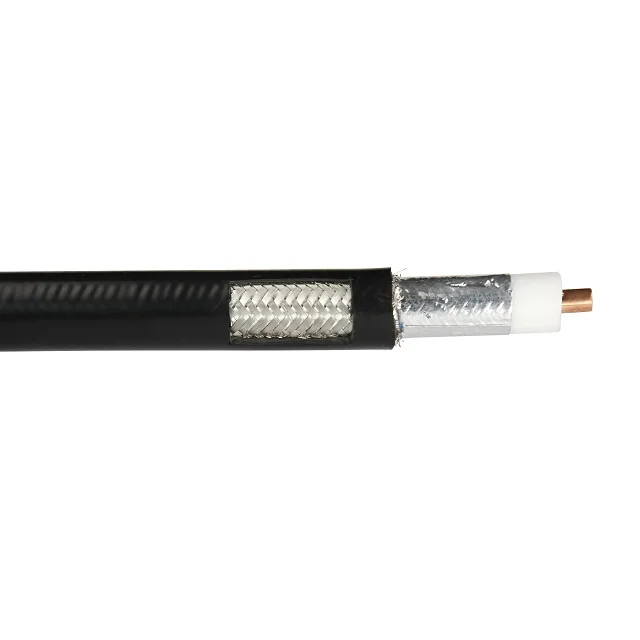

50 OHM 7D-FB Coaxial Cable for CDMA Telecommunication System , China 50 OHM 7D-FB Coaxial Cable for CDMA Telecommunication System Manufacturers, Suppliers, Factory

50 ohm RF coaxial cable 3D FB 7D FB foam PE insul50 OHM 7D-FB Coaxial Cable for CDMA Telecommunication System

Product Description

Typical Application:

1.SYWV50-7 is the same specification as 7D-FB coaxial cable Kansai standard, generally designed for jumper assemblies in wireless communications systems

2.SYWV50-7(7D-FB) has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different environment

3.7D-FB coaxial cable is used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, and aeronautics and space industry, precise instrument

Best Feature:

SYWV50-7(7D-FB) cable features a foam PE insulation coaxial cable with stable performance low loss, low delay and excellent attenuation constant for telecommunication usage.

Custom service:

We also supply 7D-FB cable assembly with N connector to SMA connector

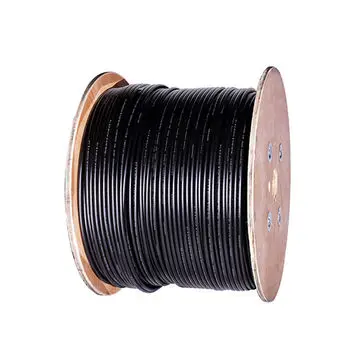

Standard Packing: 1000m/ wooden drum and pallet

SYWV50-7(7D-FB) foam PE insulated coaxial cable specifications
Material of Inner Conductor	BC (Bare Copper)
Structure of Inner Conductor	1/2.60mm
Material of Insulation	FPE(Foam PE)
Diameter of Insulation	7.30mm
1^st Shielding	Aluminum Tape
Material of Braiding(2nd Shielding)	TC (Tinned Copper),
Structure of Braiding(2nd Shielding)	112/0.15mm
Material of Jacket	PVC, PE, LSZH,FR-LSZH
Diameter of Jacket	10.20mm
Working temp	-40℃/80℃
Impedance	50Ω±2
Voltage	2500V
SWR(0-2500MHz)	≤1.2
Nominal Weight(KGS/KM)	100


Application
Mainly be used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, aeronautics and space industry, precise instrument.
