100FT RG8X 50 OHM UHF PL259 Male to Male Antenna Coaxial Cable , China 100FT RG8X 50 OHM UHF PL259 Male to Male Antenna Coaxial Cable Manufacturers, Suppliers, Factory

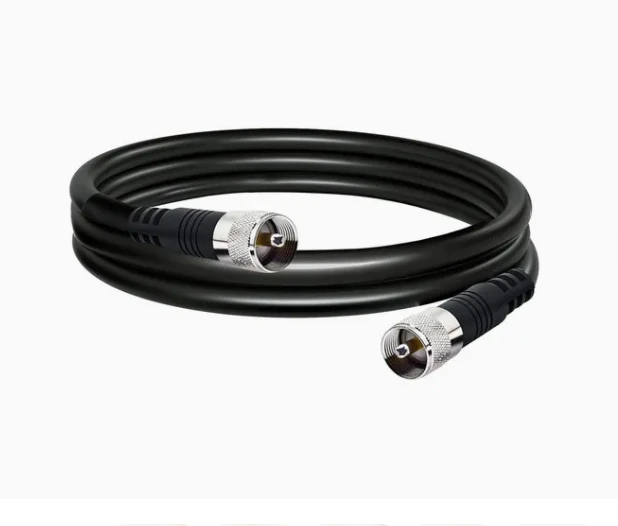

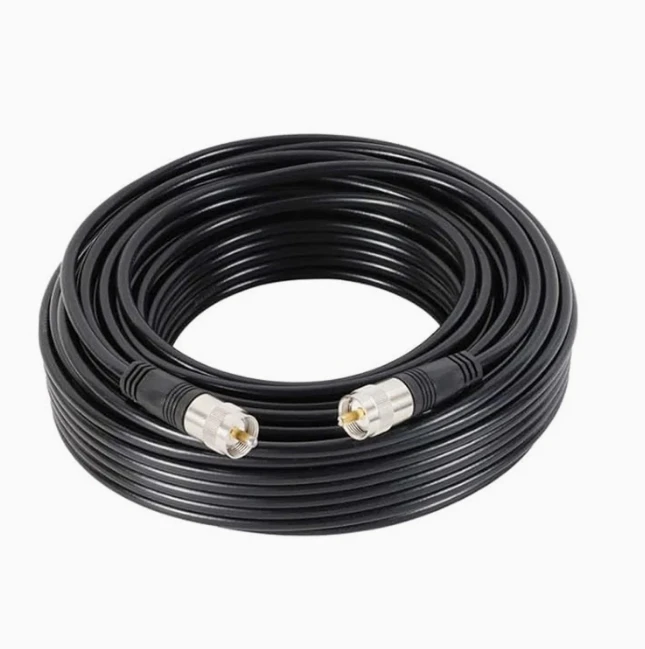

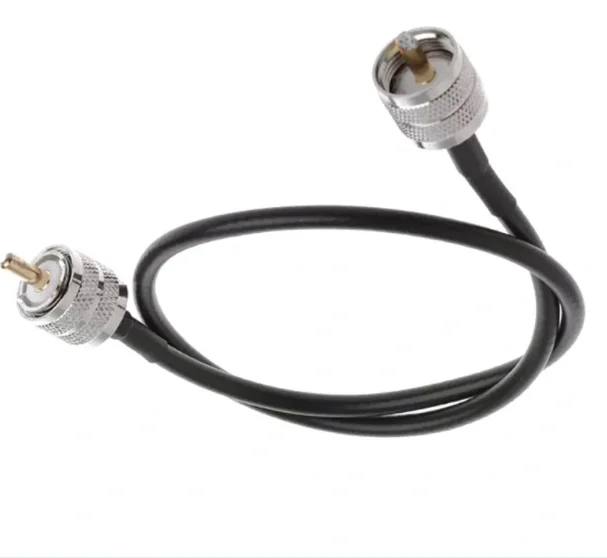

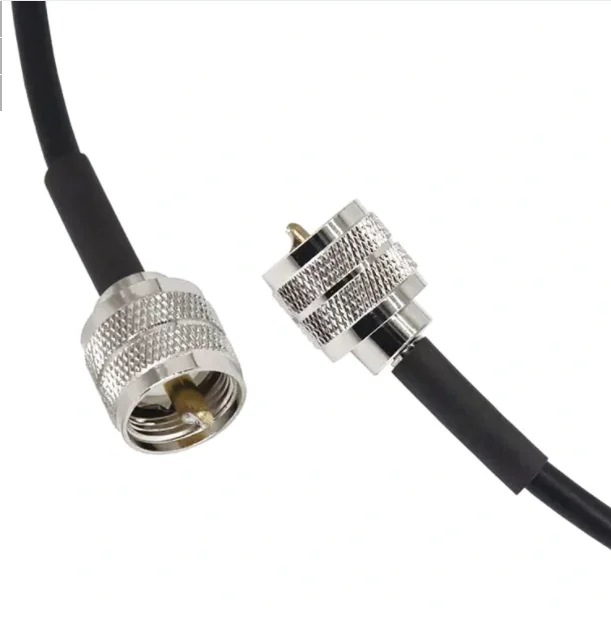

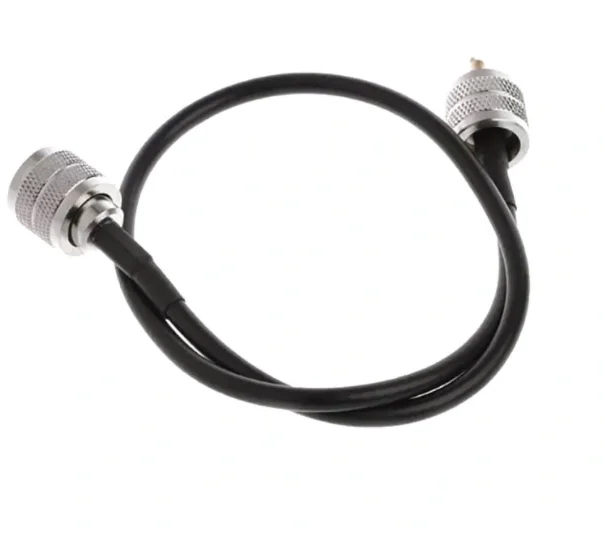

100FT RG8X 50 OHM UHF PL259 Male to Male Antenna Coaxial Cable

Product Description

100FT RG8X 50 OHM UHF PL259 Male to Male Antenna Coaxial Cable

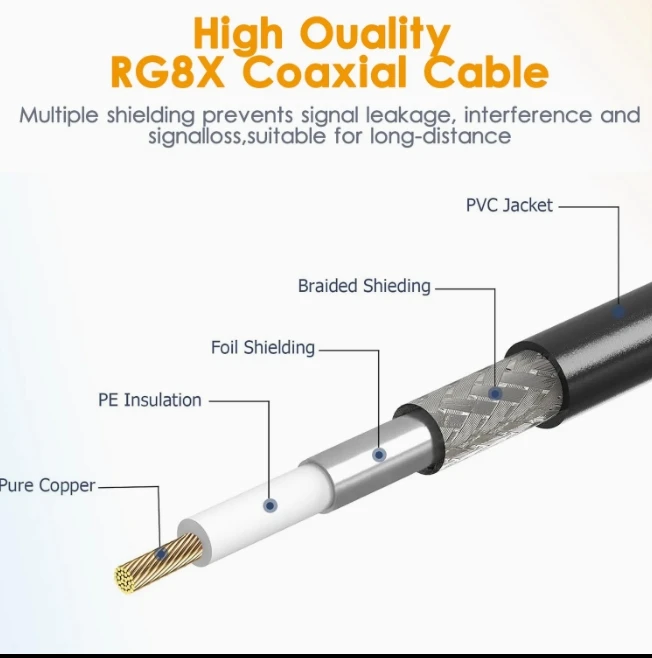

Material of Inner Conductor	BC (Bare Copper)
Structure of Inner Conductor	19/0.28mm
Material of Insulation	FPE(Foam PE)
Diameter of Insulation	3.8mm
1st Shielding	Aluminum Tape
Material of Braiding(2nd Shielding)	TC (Tinned Copper),
Structure of Braiding(2nd Shielding)	128/0.12mm
Material of Jacket	PVC, PE, LSZH,FR-LSZH
Diameter of Jacket	6.1mm
Working temp	-40℃/80℃
Impedance	50Ω±2
Voltage	1000V
SWR(0-2500MHz)	≤1.2

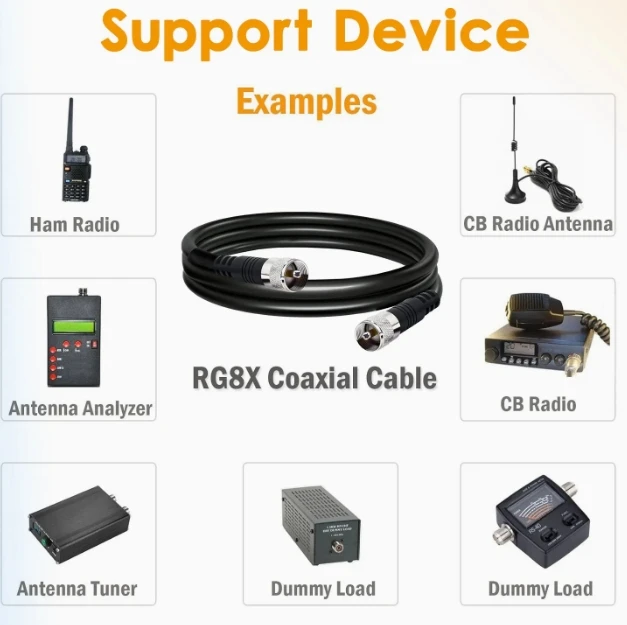

Application
Mainly be used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, aeronautics and space industry, precise instrument.
