1000ft 305m High Quality 75ohm RG6 Coaxial Cable (50ohm LSR400, RG213, RG58, RG174, 3D-FB, RG316) , China 1000ft 305m High Quality 75ohm RG6 Coaxial Cable (50ohm LSR400, RG213, RG58, RG174, 3D-FB, RG316) Manufacturers, Suppliers, Factory

Product Description

Conductor:BC(Bare Copper)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White

Typical Application:
1.LSR400 is the same specification as LMR 400, generally designed for jumper assemblies in wireless communications systems
2.LSR400 can replace for RG8 air-dielectric type cable.

3. LSR400 has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different environment

Best Feature:
1. LSR400/ LMR 400cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance.

2. Low Loss: Lowest loss of any flexible cable; comparable loss to semi-rigid cables

3. AL/PET Tape (Aluminum Mylar Tape)is used for cable shielding as a shielding insulator when assembling electronic components.
AL/PET Tapes provide more protection by increasing the metallic coverage without adding increased thickness to the diameter of the cable. It comes in 3 different colors: Dark Blue, Light Blue, and Silver

Please contact us for LSR400 cable assembly with N connector to SMA connector

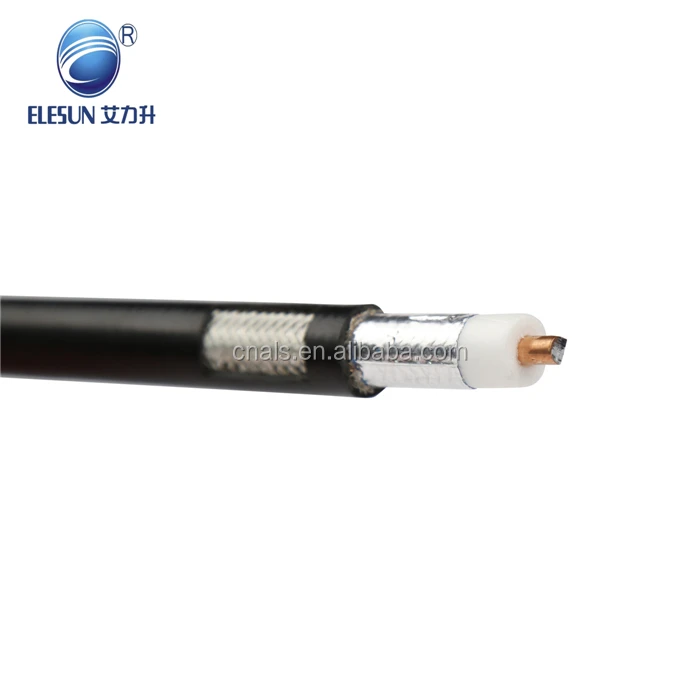

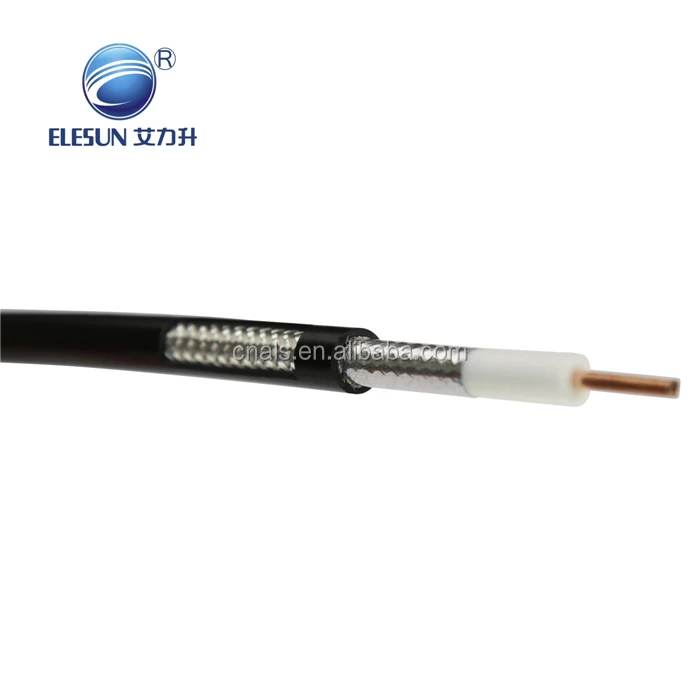

RG8/LSR400(LMR400) low loss coaxial cable specifications
Material of Inner Conductor	BC (Bare Copper)
Structure of Inner Conductor	1/2.74mm
Material of Insulation	FPE(Foam PE)
Diameter of Insulation	7.24mm
1st Shielding	Aluminum Tape
Material of Braiding(2nd Shielding)	TC (Tinned Copper)
Structure of Braiding(2nd Shielding)	144*0.15mm
Material of Jacket	PE, PVC, LSZH,FR-PVC,FR-LSZH
Diameter of Jacket	10.29mm
Working temp	-40℃/80℃
Impedance	50Ω±2
Voltage	2500V

RG8-U / RG213 / RG214/ Coaxial cable with 7/16 DIN Male Plug to BNC Male Plug Connector Pigtail Jumper Cable Assembly

Packaging & Shipping

Q1: Manufacturer Qualification Certification

We are a professional cable manufacturer certified as a National High - tech Enterprise in China . With 20 years of experience in the R & D and production of radio - frequency coaxial cables, we are a secondary supplier to communication giants such as Huawei and ZTE.

Q2: Core Product Matrix

We mainly operate four product lines:

Radio - frequency Transmission: 50/75Ω coaxial cables (RG series / LDF series)
Industrial Internet: CAT6/CAT7 network cables and M12 connector components
Power Transmission: UL - certified flame - retardant power cords (300V - 35kV)
Customized Solutions: Support in - depth customization of impedance, shielding, and sheath materials

Q3: Flexible Procurement Policy

MOQ Flexible Mechanism: For regular models, the minimum order quantity is 2km. Small - batch trial orders (100m+) are supported.
Sample Policy: Samples of commonly stocked models are provided free of charge. For special customizations, a deposit of 3 times the freight can be refunded.
Express Channel: 48 - hour express sample service (rush fee needs to be prepaid).

Q4: Intelligent Delivery System

Standard Products: 7 working days (including third - party inspection reports)
Custom - made Products: 10 - 15 working days (including drawing confirmation + first - article inspection)
Cloud Supervision System: Supports real - time tracking of production progress

Q5: Global Payment Solutions

Preferred options:
30% deposit + balance payment upon seeing the bill of lading copy (for major customers)
Sight letter of credit (L/C at sight)
Special channels:
For new customers' first orders, 50% prepayment is supported.
Strategic customers can apply for a 60 - day payment term.

Q6: Full - link Trade Support

Mainly adopt:
FOB Shanghai/Ningbo Port (for Japan, South Korea, and Southeast Asia special lines)
DDP door - to - door (tax - inclusive customs clearance for Europe and America)
VMI warehousing service in the bonded zone (for customers with an annual purchase of over 1000km)

Q7: Guide to Intelligent Manufacturing Base

Located in the core area of the Yangtze River Delta industrial belt:
Economic and Technological Development Zone, Zhenjiang City, Jiangsu Province (45 - minute drive from Nanjing Lukou Airport)
Visit Appointment: You can arrange a special car pick - up and drop - off by making an appointment 3 working days in advance.
Video Factory Inspection: Supports online real - time factory inspection via Zoom/Teams.

Q8: ODM + Strategic Cooperation

Provide three - level customization services:
Solution - level: Provide connector selection + cable structure design
Certification - level: Assist in completing UL/CE/RoHS and other certifications
Property - level: Joint development for patent - applying technologies
